Documentation for AdsML
Definition Type: Element
Name: InsertionPeriod
Namespace: http://www.adsml.org/adsmlfinancials/1.5
Type: adsml-bo:SchedulingInformationType
Containing Schema: AdsMLFinancials-1.5-PublicTypeLibrary-AS.xsd
Abstract

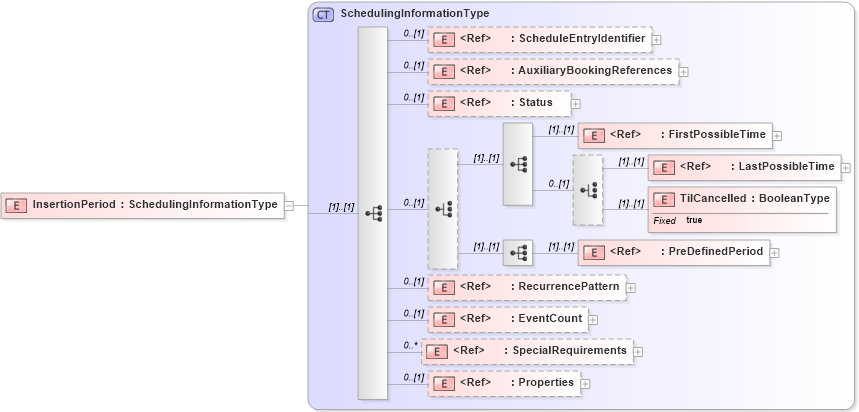

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into EventCount in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into RecurrencePattern in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PreDefinedPeriod in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into TilCancelled in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into LastPossibleTime in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into FirstPossibleTime in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryBookingReferences in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into ScheduleEntryIdentifier in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into SchedulingInformationType in schema adsmlbookings-2_5-publictypelibrary-as_xsdXSD Diagram of InsertionPeriod in schema adsmlfinancials-1_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="InsertionPeriod" type="adsml-bo:SchedulingInformationType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScheduleEntryIdentifier adsml-bo:ScheduleEntryIdentifier 0 (1)
AuxiliaryBookingReferences adsml-bo:AuxiliaryBookingReferences 0 (1)
Status adsml:Status 0 (1)
FirstPossibleTime adsml-bo:FirstPossibleTime (1) (1)
LastPossibleTime adsml-bo:LastPossibleTime (1) (1)
TilCancelled adsml-bo:TilCancelled (1) (1)
PreDefinedPeriod adsml-bo:PreDefinedPeriod (1) (1)
RecurrencePattern adsml-bo:RecurrencePattern 0 (1)
EventCount adsml-bo:EventCount 0 (1)
SpecialRequirements adsml:SpecialRequirements 0 unbounded
Properties adsml:Properties 0 (1)
Collapse Derivation Tree:
