Definition Type: ComplexType
Name: SchedulingInformationType
Namespace: http://www.adsml.org/adsmlbookings/2.5
Containing Schema: AdsMLBookings-2.5-PublicTypeLibrary-AS.xsd
Abstract

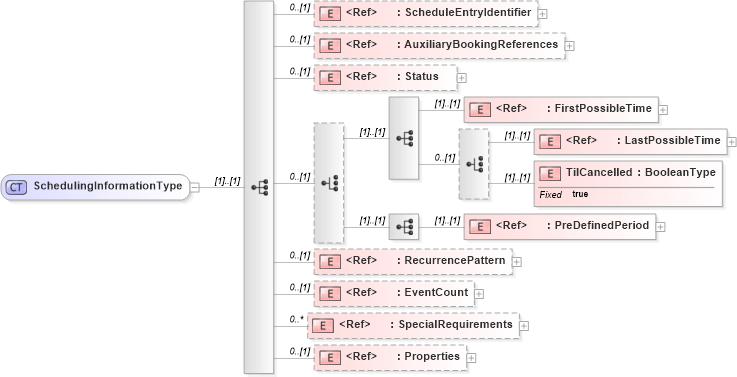

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into EventCount in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into RecurrencePattern in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PreDefinedPeriod in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into TilCancelled in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into LastPossibleTime in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into FirstPossibleTime in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryBookingReferences in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into ScheduleEntryIdentifier in schema adsmlbookings-2_5-publictypelibrary-as_xsdXSD Diagram of SchedulingInformationType in schema adsmlbookings-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="SchedulingInformationType">
    <xs:sequence>
        <xs:element ref="ScheduleEntryIdentifier" minOccurs="0" />
        <xs:element ref="AuxiliaryBookingReferences" minOccurs="0" />
        <xs:element ref="adsml:Status" minOccurs="0" />
        <xs:choice minOccurs="0">
            <xs:sequence>
                <xs:element ref="FirstPossibleTime" />
                <xs:choice minOccurs="0">
                    <xs:element ref="LastPossibleTime" />
                    <xs:element name="TilCancelled" type="adsml:BooleanType" fixed="true" />
                </xs:choice>
            </xs:sequence>
            <xs:sequence>
                <xs:element ref="PreDefinedPeriod" />
            </xs:sequence>
        </xs:choice>
        <xs:element ref="RecurrencePattern" minOccurs="0" />
        <xs:element ref="EventCount" minOccurs="0" />
        <xs:element ref="adsml:SpecialRequirements" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="adsml:Properties" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScheduleEntryIdentifier adsml-bo:ScheduleEntryIdentifier 0 (1)
AuxiliaryBookingReferences adsml-bo:AuxiliaryBookingReferences 0 (1)
Status adsml:Status 0 (1)
FirstPossibleTime adsml-bo:FirstPossibleTime (1) (1)
LastPossibleTime adsml-bo:LastPossibleTime (1) (1)
TilCancelled adsml-bo:TilCancelled (1) (1)
PreDefinedPeriod adsml-bo:PreDefinedPeriod (1) (1)
RecurrencePattern adsml-bo:RecurrencePattern 0 (1)
EventCount adsml-bo:EventCount 0 (1)
SpecialRequirements adsml:SpecialRequirements 0 unbounded
Properties adsml:Properties 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-fi:InsertionPeriod, adsml-ma:InsertionPeriodadsml-fi:Scheduling, adsml-ma:Scheduling, adsml-ma:Scheduling,
