Documentation for AdsML
Definition Type: Element
Name: Item
Namespace: http://www.adsml.org/adsmlenvelope/1.1
Containing Schema: AdsMLEnvelope-1.1-Main-AS.xsd
Abstract

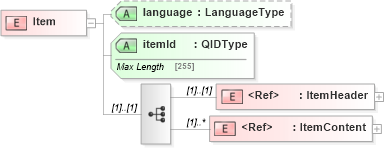

Collapse XSD Schema Diagram:
Drilldown into ItemContent in schema adsmlenvelope-1_1-main-as_xsd Drilldown into ItemHeader in schema adsmlenvelope-1_1-main-as_xsd Drilldown into itemId in schema adsmlenvelope-1_1-main-as_xsd Drilldown into language in schema adsmlenvelope-1_1-main-as_xsdXSD Diagram of Item in schema adsmlenvelope-1_1-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="Item">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ItemHeader" />
            <xs:element ref="ItemContent" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="language" type="adsml:LanguageType" use="optional" />
        <xs:attribute name="itemId" type="adsml:QIDType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemHeader nsA:ItemHeader (1) (1)
ItemContent nsA:ItemContent (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
language nsA:language Optional
itemId nsA:itemId Required
