Documentation for AdsML
Definition Type: Element
Name: ResponseContent
Namespace: http://www.adsml.org/adsmlenvelope/1.1
Containing Schema: AdsMLEnvelope-1.1-Main-AS.xsd
Abstract

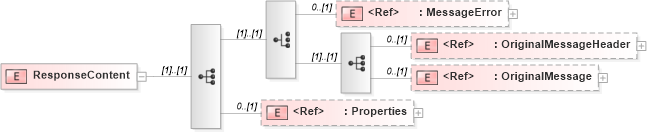

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into OriginalMessage in schema adsmlenvelope-1_1-main-as_xsd Drilldown into OriginalMessageHeader in schema adsmlenvelope-1_1-main-as_xsd Drilldown into MessageError in schema adsmlenvelope-1_1-main-as_xsdXSD Diagram of ResponseContent in schema adsmlenvelope-1_1-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="ResponseContent">
    <xs:complexType>
        <xs:sequence>
            <xs:choice>
                <xs:element ref="MessageError" minOccurs="0" />
                <xs:sequence>
                    <xs:element ref="OriginalMessageHeader" minOccurs="0" />
                    <xs:element ref="OriginalMessage" minOccurs="0" />
                </xs:sequence>
            </xs:choice>
            <xs:element ref="adsml:Properties" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MessageError nsA:MessageError 0 (1)
OriginalMessageHeader nsA:OriginalMessageHeader 0 (1)
OriginalMessage nsA:OriginalMessage 0 (1)
Properties adsml:Properties 0 (1)
