Documentation for Chemical Markup Language (CML)
Definition Type: Attribute
Name: toType
Namespace: http://www.xml-cml.org/schema
Type: nsA:xmlElementType
Containing Schema: schema.xsd
Use (Optional)
Documentation:
The type of the base of a link. The local tagname of the referenced element (e.g. 'molecule' or 'peakGroup'). This acts as a partial check on the integrity of the link. Software can assume that the referenced element is of a given tytpe and can create an object supporting that type. This attribute can be attached to the 'map' attribute and requires all contained links to be of this type. This can be overridden by a 'toType' attribute on indivdual links, but it may also be useful to split the map into maps od different link types. 2005-06-18: created
Collapse XSD Schema Diagram:

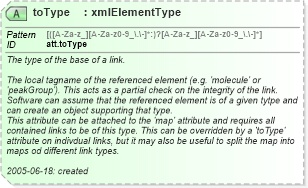

XSD Diagram of toType in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:attribute id="att.toType" name="toType" type="xmlElementType">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">The type of the base of a link.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">
                <h:p>The local tagname of the referenced element (e.g. 'molecule' or 'peakGroup'). This acts as a partial check on the integrity of the link. Software can assume that the referenced element is of a given tytpe and can create an object supporting that type.</h:p>
                <h:p>This attribute can be attached to the 'map' attribute and requires all contained links to be of this type. This can be overridden by a 'toType' attribute on indivdual links, but it may also be useful to split the map into maps od different link types.</h:p>
            </h:div>
            <h:div class="curation" xmlns:h="http://www.w3.org/1999/xhtml">2005-06-18: created</h:div>
        </xsd:documentation>
    </xsd:annotation>
</xsd:attribute>
Collapse Derivation Tree:
