Definition Type: SimpleType
Name: refType
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Documentation:
A reference to an existing object. A reference to an existing element in the document. The target of the ref attribute must exist. The test for validity will normally occur in the element's _appinfo_. Any DOM Node created from this element will normally be a reference to another Node, so that if the target node is modified a the dereferenced content is modified. At present there are no deep copy semantics hardcoded into the schema. The semantic of reference are normally identical to an idType (e.g. "a123b"). Howevere there are some cases where compound references are required, such as "a123b:pq456". It is likely that this will be superseded at by RDF or Xpointer, but as long as we have non-uniqueIds this is a problem
Collapse XSD Schema Diagram:

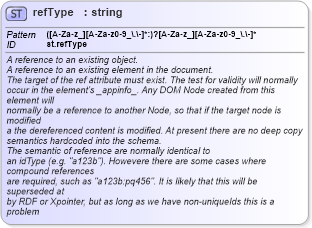

XSD Diagram of refType in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:simpleType name="refType" id="st.refType">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A reference to an existing object.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">A reference to an existing element in the document.
            The target of the ref attribute must exist. The test for validity will normally
            occur in the element's _appinfo_. Any DOM Node created from this element will
            normally be a reference to another Node, so that if the target node is modified
            a the dereferenced content is modified. At present there are no deep copy
            semantics hardcoded into the schema.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">The semantic of reference are normally identical to
            an idType (e.g. "a123b"). Howevere there are some cases where compound references
            are required, such as "a123b:pq456". It is likely that this will be superseded at
            by RDF or Xpointer, but as long as we have non-uniqueIds this is a problem</h:div>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:restriction base="xsd:string">
        <xsd:pattern value="([A-Za-z_][A-Za-z0-9_\.\-]*:)?[A-Za-z_][A-Za-z0-9_\.\-]*" />
    </xsd:restriction>
</xsd:simpleType>
Collapse Facets:
Facet Value
Pattern ([A-Za-z_][A-Za-z0-9_\.\-]*:)?[A-Za-z_][A-Za-z0-9_\.\-]*
Collapse Derivation Tree:
Collapse References:
nsA:atomSetRef, nsA:convention, nsA:from, nsA:isotopeRef, nsA:kpointRef, nsA:ref, nsA:regionRefs, nsA:to, nsA:xmlElementType
