Documentation for CIDX eChemical Standard
Definition Type: Element
Name: DeliveryPerformanceIncident
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:DeliveryPerformanceIncidentType
Containing Schema: CIDX_CeS_v4.0_Message_ShipmentStatus.xsd
Abstract
Documentation:
Structure containing the properties related to Delivery Performance Incidents.

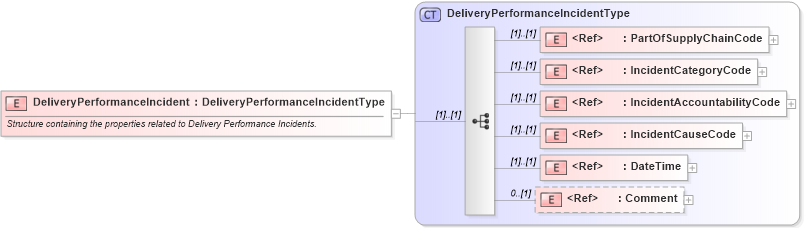

Collapse XSD Schema Diagram:
Drilldown into Comment in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DateTime in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into IncidentCauseCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into IncidentAccountabilityCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into IncidentCategoryCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into PartOfSupplyChainCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into DeliveryPerformanceIncidentType in schema cidx_ces_v4_0_message_shipmentstatus_xsdXSD Diagram of DeliveryPerformanceIncident in schema cidx_ces_v4_0_message_shipmentstatus_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="DeliveryPerformanceIncident" type="DeliveryPerformanceIncidentType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>Structure containing the properties related to Delivery Performance Incidents.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartOfSupplyChainCode nsA:PartOfSupplyChainCode (1) (1)
IncidentCategoryCode nsA:IncidentCategoryCode (1) (1)
IncidentAccountabilityCode nsA:IncidentAccountabilityCode (1) (1)
IncidentCauseCode nsA:IncidentCauseCode (1) (1)
DateTime nsA:DateTime (1) (1)
Comment nsA:Comment 0 (1)
Collapse Derivation Tree:
