Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: DeliveryPerformanceIncidentType
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Containing Schema: CIDX_CeS_v4.0_Message_ShipmentStatus.xsd
Abstract

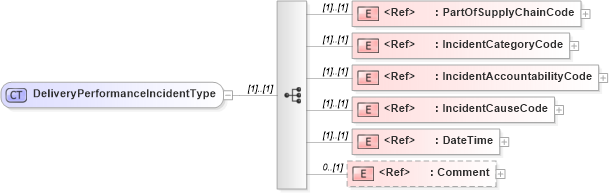

Collapse XSD Schema Diagram:
Drilldown into Comment in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DateTime in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into IncidentCauseCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into IncidentAccountabilityCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into IncidentCategoryCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into PartOfSupplyChainCode in schema cidx_ces_v4_0_message_shipmentstatus_xsdXSD Diagram of DeliveryPerformanceIncidentType in schema cidx_ces_v4_0_message_shipmentstatus_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="DeliveryPerformanceIncidentType">
    <xsd:sequence>
        <xsd:element ref="PartOfSupplyChainCode" />
        <xsd:element ref="IncidentCategoryCode" />
        <xsd:element ref="IncidentAccountabilityCode" />
        <xsd:element ref="IncidentCauseCode" />
        <xsd:element ref="DateTime" />
        <xsd:element ref="Comment" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartOfSupplyChainCode nsA:PartOfSupplyChainCode (1) (1)
IncidentCategoryCode nsA:IncidentCategoryCode (1) (1)
IncidentAccountabilityCode nsA:IncidentAccountabilityCode (1) (1)
IncidentCauseCode nsA:IncidentCauseCode (1) (1)
DateTime nsA:DateTime (1) (1)
Comment nsA:Comment 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:DeliveryPerformanceIncident
