Documentation for CIDX eChemical Standard
Definition Type: Element
Name: ShipmentStatusDetails
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:ShipmentStatusDetailsType
Containing Schema: CIDX_CeS_v4.0_Message_ShipmentStatus.xsd
Abstract
Documentation:
The details supporting the ShipmentStatus message.

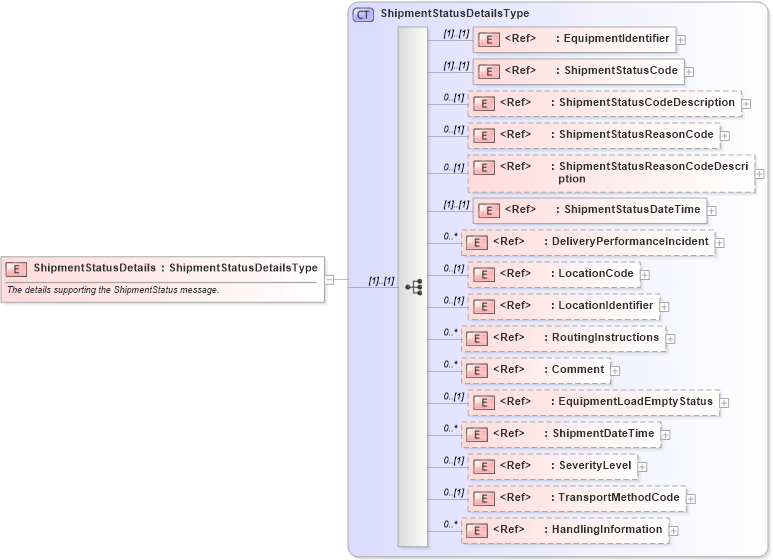

Collapse XSD Schema Diagram:
Drilldown into HandlingInformation in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into TransportMethodCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SeverityLevel in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into ShipmentDateTime in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into EquipmentLoadEmptyStatus in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into Comment in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RoutingInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LocationIdentifier in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into LocationCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryPerformanceIncident in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into ShipmentStatusDateTime in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into ShipmentStatusReasonCodeDescription in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into ShipmentStatusReasonCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into ShipmentStatusCodeDescription in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into ShipmentStatusCode in schema cidx_ces_v4_0_message_shipmentstatus_xsd Drilldown into EquipmentIdentifier in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentStatusDetailsType in schema cidx_ces_v4_0_message_shipmentstatus_xsdXSD Diagram of ShipmentStatusDetails in schema cidx_ces_v4_0_message_shipmentstatus_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="ShipmentStatusDetails" type="ShipmentStatusDetailsType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>The details supporting the ShipmentStatus message.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EquipmentIdentifier nsA:EquipmentIdentifier (1) (1)
ShipmentStatusCode nsA:ShipmentStatusCode (1) (1)
ShipmentStatusCodeDescription nsA:ShipmentStatusCodeDescription 0 (1)
ShipmentStatusReasonCode nsA:ShipmentStatusReasonCode 0 (1)
ShipmentStatusReasonCodeDescription nsA:ShipmentStatusReasonCodeDescription 0 (1)
ShipmentStatusDateTime nsA:ShipmentStatusDateTime (1) (1)
DeliveryPerformanceIncident nsA:DeliveryPerformanceIncident 0 unbounded
LocationCode nsA:LocationCode 0 (1)
LocationIdentifier nsA:LocationIdentifier 0 (1)
RoutingInstructions nsA:RoutingInstructions 0 unbounded
Comment nsA:Comment 0 unbounded
EquipmentLoadEmptyStatus nsA:EquipmentLoadEmptyStatus 0 (1)
ShipmentDateTime nsA:ShipmentDateTime 0 unbounded
SeverityLevel nsA:SeverityLevel 0 (1)
TransportMethodCode nsA:TransportMethodCode 0 (1)
HandlingInformation nsA:HandlingInformation 0 unbounded
Collapse Derivation Tree:
