Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: LoadTenderOceanPropertiesType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

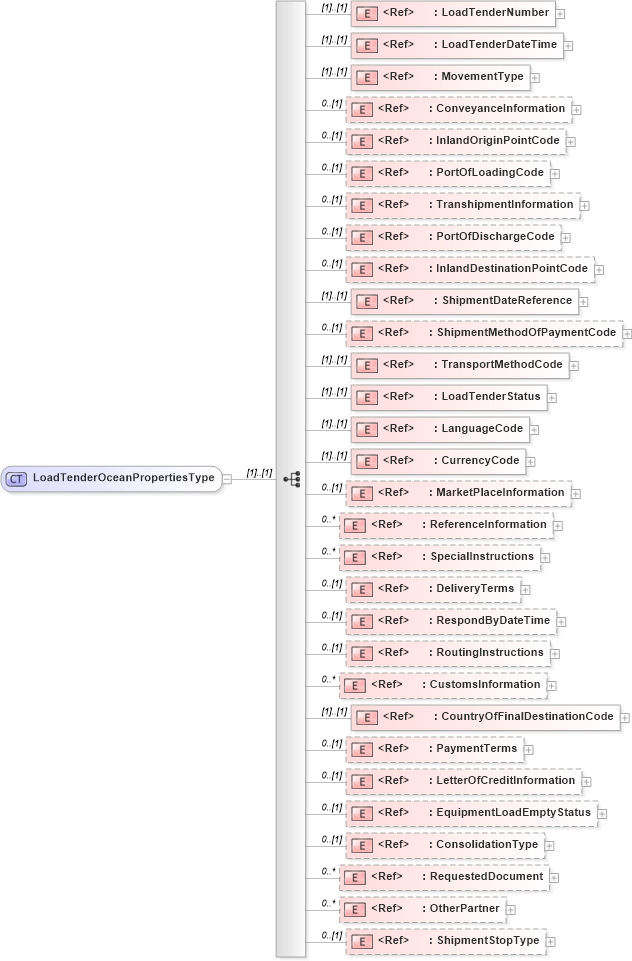

Collapse XSD Schema Diagram:
Drilldown into ShipmentStopType in schema cidx_5_0_xsd Drilldown into OtherPartner in schema cidx_5_0_xsd Drilldown into RequestedDocument in schema cidx_5_0_xsd Drilldown into ConsolidationType in schema cidx_5_0_xsd Drilldown into EquipmentLoadEmptyStatus in schema cidx_5_0_xsd Drilldown into LetterOfCreditInformation in schema cidx_5_0_xsd Drilldown into PaymentTerms in schema cidx_5_0_xsd Drilldown into CountryOfFinalDestinationCode in schema cidx_5_0_xsd Drilldown into CustomsInformation in schema cidx_5_0_xsd Drilldown into RoutingInstructions in schema cidx_5_0_xsd Drilldown into RespondByDateTime in schema cidx_5_0_xsd Drilldown into DeliveryTerms in schema cidx_5_0_xsd Drilldown into SpecialInstructions in schema cidx_5_0_xsd Drilldown into ReferenceInformation in schema cidx_5_0_xsd Drilldown into MarketPlaceInformation in schema cidx_5_0_xsd Drilldown into CurrencyCode in schema cidx_5_0_xsd Drilldown into LanguageCode in schema cidx_5_0_xsd Drilldown into LoadTenderStatus in schema cidx_5_0_xsd Drilldown into TransportMethodCode in schema cidx_5_0_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_5_0_xsd Drilldown into ShipmentDateReference in schema cidx_5_0_xsd Drilldown into InlandDestinationPointCode in schema cidx_5_0_xsd Drilldown into PortOfDischargeCode in schema cidx_5_0_xsd Drilldown into TranshipmentInformation in schema cidx_5_0_xsd Drilldown into PortOfLoadingCode in schema cidx_5_0_xsd Drilldown into InlandOriginPointCode in schema cidx_5_0_xsd Drilldown into ConveyanceInformation in schema cidx_5_0_xsd Drilldown into MovementType in schema cidx_5_0_xsd Drilldown into LoadTenderDateTime in schema cidx_5_0_xsd Drilldown into LoadTenderNumber in schema cidx_5_0_xsdXSD Diagram of LoadTenderOceanPropertiesType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="LoadTenderOceanPropertiesType">
    <xsd:sequence>
        <xsd:element ref="LoadTenderNumber" />
        <xsd:element ref="LoadTenderDateTime" />
        <xsd:element ref="MovementType" />
        <xsd:element ref="ConveyanceInformation" minOccurs="0" />
        <xsd:element ref="InlandOriginPointCode" minOccurs="0" />
        <xsd:element ref="PortOfLoadingCode" minOccurs="0" />
        <xsd:element ref="TranshipmentInformation" minOccurs="0" />
        <xsd:element ref="PortOfDischargeCode" minOccurs="0" />
        <xsd:element ref="InlandDestinationPointCode" minOccurs="0" />
        <xsd:element ref="ShipmentDateReference" />
        <xsd:element ref="ShipmentMethodOfPaymentCode" minOccurs="0" />
        <xsd:element ref="TransportMethodCode" />
        <xsd:element ref="LoadTenderStatus" />
        <xsd:element ref="LanguageCode" />
        <xsd:element ref="CurrencyCode" />
        <xsd:element ref="MarketPlaceInformation" minOccurs="0" />
        <xsd:element ref="ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DeliveryTerms" minOccurs="0" />
        <xsd:element ref="RespondByDateTime" minOccurs="0" />
        <xsd:element ref="RoutingInstructions" minOccurs="0" />
        <xsd:element ref="CustomsInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CountryOfFinalDestinationCode" />
        <xsd:element ref="PaymentTerms" minOccurs="0" />
        <xsd:element ref="LetterOfCreditInformation" minOccurs="0" />
        <xsd:element ref="EquipmentLoadEmptyStatus" minOccurs="0" />
        <xsd:element ref="ConsolidationType" minOccurs="0" />
        <xsd:element ref="RequestedDocument" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OtherPartner" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ShipmentStopType" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LoadTenderNumber nsA:LoadTenderNumber (1) (1)
LoadTenderDateTime nsA:LoadTenderDateTime (1) (1)
MovementType nsA:MovementType (1) (1)
ConveyanceInformation nsA:ConveyanceInformation 0 (1)
InlandOriginPointCode nsA:InlandOriginPointCode 0 (1)
PortOfLoadingCode nsA:PortOfLoadingCode 0 (1)
TranshipmentInformation nsA:TranshipmentInformation 0 (1)
PortOfDischargeCode nsA:PortOfDischargeCode 0 (1)
InlandDestinationPointCode nsA:InlandDestinationPointCode 0 (1)
ShipmentDateReference nsA:ShipmentDateReference (1) (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
TransportMethodCode nsA:TransportMethodCode (1) (1)
LoadTenderStatus nsA:LoadTenderStatus (1) (1)
LanguageCode nsA:LanguageCode (1) (1)
CurrencyCode nsA:CurrencyCode (1) (1)
MarketPlaceInformation nsA:MarketPlaceInformation 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
SpecialInstructions nsA:SpecialInstructions 0 unbounded
DeliveryTerms nsA:DeliveryTerms 0 (1)
RespondByDateTime nsA:RespondByDateTime 0 (1)
RoutingInstructions nsA:RoutingInstructions 0 (1)
CustomsInformation nsA:CustomsInformation 0 unbounded
CountryOfFinalDestinationCode nsA:CountryOfFinalDestinationCode (1) (1)
PaymentTerms nsA:PaymentTerms 0 (1)
LetterOfCreditInformation nsA:LetterOfCreditInformation 0 (1)
EquipmentLoadEmptyStatus nsA:EquipmentLoadEmptyStatus 0 (1)
ConsolidationType nsA:ConsolidationType 0 (1)
RequestedDocument nsA:RequestedDocument 0 unbounded
OtherPartner nsA:OtherPartner 0 unbounded
ShipmentStopType nsA:ShipmentStopType 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:LoadTenderOceanProperties
