Definition Type: Element
Name: Fork
Namespace: http://docs.oasis-open.org/ebxml-bp/ebbp-2.0
Type: nsB:ForkType
Containing Schema: ebbp-2.0.4.xsd
Abstract
Documentation:
A choreography construct with one incoming transition and many outgoing transitions. All outgoing transitions are considered to happen either in parallel or, when indicated, an exclusive OR is operative.

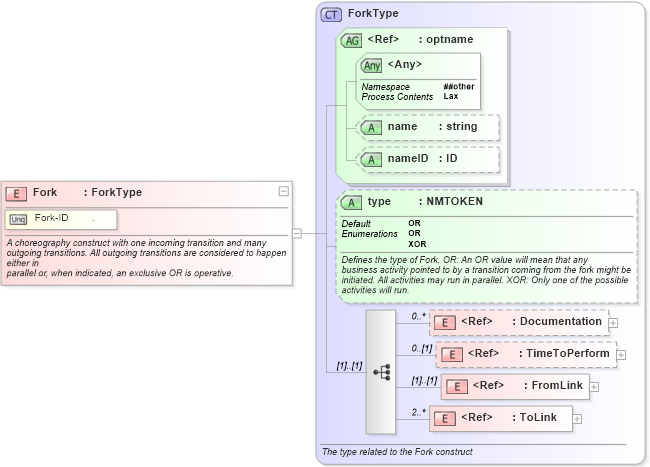

Collapse XSD Schema Diagram:
Drilldown into ToLink in schema ebbp-2_0_4_xsd Drilldown into FromLink in schema ebbp-2_0_4_xsd Drilldown into TimeToPerform in schema ebbp-2_0_4_xsd Drilldown into Documentation in schema ebbp-2_0_4_xsd Drilldown into type in schema ebbp-2_0_4_xsd Drilldown into nameID in schema ebbp-2_0_4_xsd Drilldown into name in schema ebbp-2_0_4_xsd Drilldown into optname in schema ebbp-2_0_4_xsd Drilldown into ForkType in schema ebbp-2_0_4_xsdXSD Diagram of Fork in schema ebbp-2_0_4_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<xsd:element name="Fork" type="ForkType">
    <xsd:annotation>
        <xsd:documentation>A choreography construct with one incoming transition and many
				outgoing transitions. All outgoing transitions are considered to happen either in
				parallel or, when indicated, an exclusive OR is operative.</xsd:documentation>
    </xsd:annotation>
    <xsd:unique name="Fork-ID">
        <xsd:selector xpath="." />
        <xsd:field xpath="nameID" />
    </xsd:unique>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Documentation nsB:Documentation 0 unbounded
TimeToPerform nsB:TimeToPerform 0 (1)
FromLink nsB:FromLink (1) (1)
ToLink nsB:ToLink 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name (Optional)
nameID nsB:nameID (Optional)
type nsB:type OR Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
