Definition Type: Element
Name: RequestingBusinessActivity
Namespace: http://docs.oasis-open.org/ebxml-bp/ebbp-2.0
Type: nsB:RequestingBusinessActivityType
Containing Schema: ebbp-2.0.4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

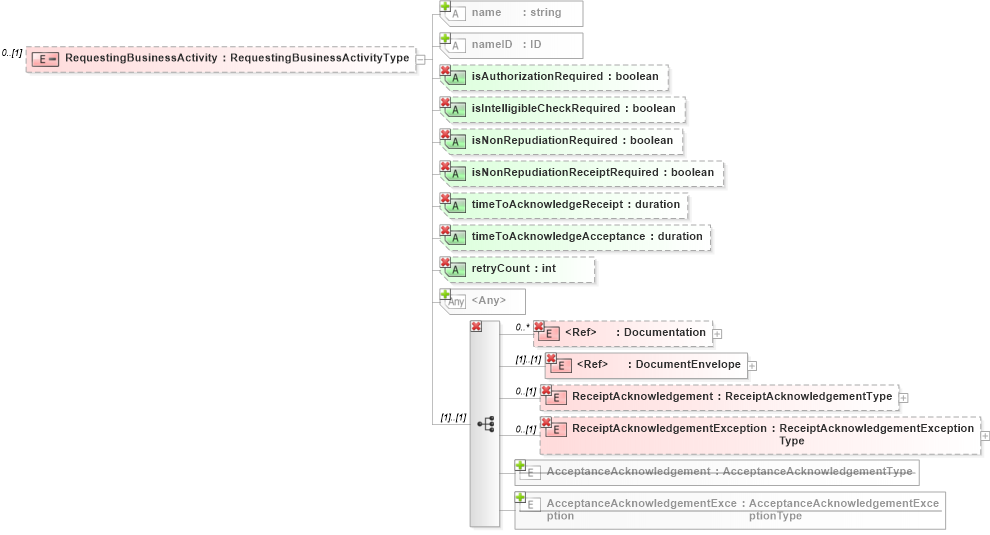

Collapse XSD Schema Diagram:
Drilldown into AcceptanceAcknowledgementException in schema ebbp-2_0_4_xsd Drilldown into AcceptanceAcknowledgement in schema ebbp-2_0_4_xsd Drilldown into ReceiptAcknowledgementException in schema ebbp-2_0_4_xsd Drilldown into ReceiptAcknowledgement in schema ebbp-2_0_4_xsd Drilldown into DocumentEnvelope in schema ebbp-2_0_4_xsd Drilldown into Documentation in schema ebbp-2_0_4_xsd Drilldown into retryCount in schema ebbp-2_0_4_xsd Drilldown into timeToAcknowledgeAcceptance in schema ebbp-2_0_4_xsd Drilldown into timeToAcknowledgeReceipt in schema ebbp-2_0_4_xsd Drilldown into isNonRepudiationReceiptRequired in schema ebbp-2_0_4_xsd Drilldown into isNonRepudiationRequired in schema ebbp-2_0_4_xsd Drilldown into isIntelligibleCheckRequired in schema ebbp-2_0_4_xsd Drilldown into isAuthorizationRequired in schema ebbp-2_0_4_xsd Drilldown into nameID in schema ebbp-2_0_4_xsd Drilldown into name in schema ebbp-2_0_4_xsdXSD Diagram of RequestingBusinessActivity in schema ebbp-2_0_4_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<xsd:element name="RequestingBusinessActivity" minOccurs="0">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:restriction base="RequestingBusinessActivityType">
                <xsd:sequence>
                    <xsd:element ref="Documentation" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element ref="DocumentEnvelope" />
                    <xsd:element name="ReceiptAcknowledgement" type="ReceiptAcknowledgementType" minOccurs="0" />
                    <xsd:element name="ReceiptAcknowledgementException" type="ReceiptAcknowledgementExceptionType" minOccurs="0" />
                </xsd:sequence>
                <xsd:attribute name="isAuthorizationRequired" type="xsd:boolean" />
                <xsd:attribute name="isIntelligibleCheckRequired" type="xsd:boolean" />
                <xsd:attribute name="isNonRepudiationRequired" type="xsd:boolean" />
                <xsd:attribute name="isNonRepudiationReceiptRequired" type="xsd:boolean" />
                <xsd:attribute name="timeToAcknowledgeReceipt" type="xsd:duration" />
                <xsd:attribute name="timeToAcknowledgeAcceptance" type="xsd:duration" />
                <xsd:attribute name="retryCount" type="xsd:int" />
            </xsd:restriction>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Documentation nsB:Documentation 0 unbounded
DocumentEnvelope nsB:DocumentEnvelope 0 unbounded
ReceiptAcknowledgement nsB:ReceiptAcknowledgement 0 (1)
ReceiptAcknowledgementException nsB:ReceiptAcknowledgementException 0 (1)
AcceptanceAcknowledgement nsB:AcceptanceAcknowledgement 0 (1)
AcceptanceAcknowledgementException nsB:AcceptanceAcknowledgementException 0 (1)
Documentation nsB:Documentation 0 unbounded
DocumentEnvelope nsB:DocumentEnvelope (1) (1)
ReceiptAcknowledgement nsB:ReceiptAcknowledgement 0 (1)
ReceiptAcknowledgementException nsB:ReceiptAcknowledgementException 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name Required
nameID nsB:nameID Required
isAuthorizationRequired nsB:isAuthorizationRequired (Optional)
isIntelligibleCheckRequired nsB:isIntelligibleCheckRequired (Optional)
isNonRepudiationRequired nsB:isNonRepudiationRequired (Optional)
isNonRepudiationReceiptRequired nsB:isNonRepudiationReceiptRequired (Optional)
timeToAcknowledgeReceipt nsB:timeToAcknowledgeReceipt (Optional)
timeToAcknowledgeAcceptance nsB:timeToAcknowledgeAcceptance (Optional)
retryCount nsB:retryCount (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
