Definition Type: Element
Name: TransportSender
Namespace: http://www.oasis-open.org/committees/ebxml-cppa/schema/cpp-cpa-2_0.xsd
Containing Schema: cpp-cpa-2_0.xsd
Abstract

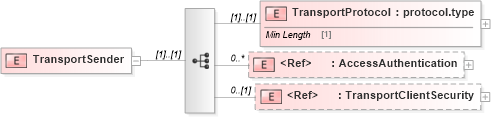

Collapse XSD Schema Diagram:
Drilldown into TransportClientSecurity in schema cpp-cpa-2_0_xsd Drilldown into AccessAuthentication in schema cpp-cpa-2_0_xsd Drilldown into TransportProtocol in schema cpp-cpa-2_0_xsdXSD Diagram of TransportSender in schema cpp-cpa-2_0_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<element name="TransportSender">
    <complexType>
        <sequence>
            <element name="TransportProtocol" type="tns:protocol.type" />
            <element ref="tns:AccessAuthentication" minOccurs="0" maxOccurs="unbounded" />
            <element ref="tns:TransportClientSecurity" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportProtocol tns:TransportProtocol (1) (1)
AccessAuthentication tns:AccessAuthentication 0 unbounded
TransportClientSecurity tns:TransportClientSecurity 0 (1)
