Definition Type: Element
Name: Department
Namespace: urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
Containing Schema: xAL.xsd
Abstract
Documentation:
Subdivision in the firm: School of Physics at Victoria University (School of Physics is the department)

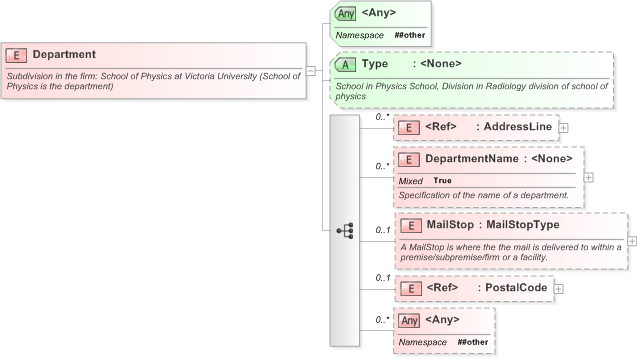

Collapse XSD Schema Diagram:
Drilldown into PostalCode in schema xal_xsd Drilldown into MailStop in schema xal_xsd Drilldown into DepartmentName in schema xal_xsd Drilldown into AddressLine in schema xal_xsd Drilldown into Type in schema xal_xsdXSD Diagram of Department in schema xal_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="Department">
    <xs:annotation>
        <xs:documentation>Subdivision in the firm: School of Physics at Victoria University (School of Physics is the department)</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="AddressLine" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="DepartmentName" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Specification of the name of a department.</xs:documentation>
                </xs:annotation>
                <xs:complexType mixed="true">
                    <xs:attribute name="Type" />
                    <xs:attributeGroup ref="grPostal" />
                    <xs:anyAttribute namespace="##other" />
                </xs:complexType>
            </xs:element>
            <xs:element name="MailStop" type="MailStopType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>A MailStop is where the the mail is delivered to within a premise/subpremise/firm or a facility.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element ref="PostalCode" minOccurs="0" />
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="Type">
            <xs:annotation>
                <xs:documentation>School in Physics School, Division in Radiology division of school of physics</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddressLine xal:AddressLine 0 unbounded
DepartmentName xal:DepartmentName 0 unbounded
MailStop xal:MailStop 0 (1)
PostalCode xal:PostalCode 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Type xal:Type (Optional)
<anyAttribute> Allowed namespace: '##other'
