Definition Type: Element
Name: PostBox
Namespace: urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
Containing Schema: xAL.xsd
Abstract
Documentation:
Specification of a postbox like mail delivery point. Only a single postbox number can be specified. Examples of postboxes are POBox, free mail numbers, etc.

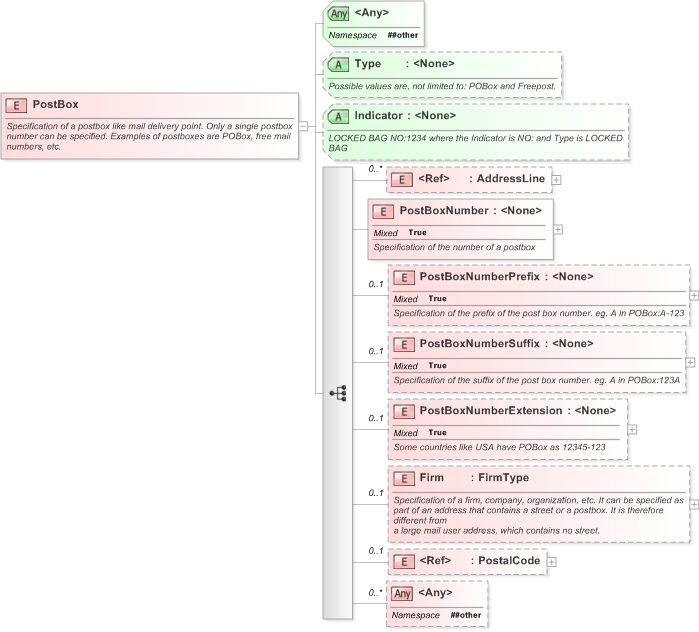

Collapse XSD Schema Diagram:
Drilldown into PostalCode in schema xal_xsd Drilldown into Firm in schema xal_xsd Drilldown into PostBoxNumberExtension in schema xal_xsd Drilldown into PostBoxNumberSuffix in schema xal_xsd Drilldown into PostBoxNumberPrefix in schema xal_xsd Drilldown into PostBoxNumber in schema xal_xsd Drilldown into AddressLine in schema xal_xsd Drilldown into Indicator in schema xal_xsd Drilldown into Type in schema xal_xsdXSD Diagram of PostBox in schema xal_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="PostBox">
    <xs:annotation>
        <xs:documentation>Specification of a postbox like mail delivery point. Only a single postbox number can be specified. Examples of postboxes are POBox, free mail numbers, etc.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="AddressLine" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="PostBoxNumber">
                <xs:annotation>
                    <xs:documentation>Specification of the number of a postbox</xs:documentation>
                </xs:annotation>
                <xs:complexType mixed="true">
                    <xs:attributeGroup ref="grPostal" />
                    <xs:anyAttribute namespace="##other" />
                </xs:complexType>
            </xs:element>
            <xs:element name="PostBoxNumberPrefix" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Specification of the prefix of the post box number. eg. A in POBox:A-123</xs:documentation>
                </xs:annotation>
                <xs:complexType mixed="true">
                    <xs:attribute name="NumberPrefixSeparator">
                        <xs:annotation>
                            <xs:documentation>A-12 where 12 is number and A is prefix and "-" is the separator</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attributeGroup ref="grPostal" />
                    <xs:anyAttribute namespace="##other" />
                </xs:complexType>
            </xs:element>
            <xs:element name="PostBoxNumberSuffix" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Specification of the suffix of the post box number. eg. A in POBox:123A</xs:documentation>
                </xs:annotation>
                <xs:complexType mixed="true">
                    <xs:attribute name="NumberSuffixSeparator">
                        <xs:annotation>
                            <xs:documentation>12-A where 12 is number and A is suffix and "-" is the separator</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attributeGroup ref="grPostal" />
                    <xs:anyAttribute namespace="##other" />
                </xs:complexType>
            </xs:element>
            <xs:element name="PostBoxNumberExtension" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Some countries like USA have POBox as 12345-123</xs:documentation>
                </xs:annotation>
                <xs:complexType mixed="true">
                    <xs:attribute name="NumberExtensionSeparator">
                        <xs:annotation>
                            <xs:documentation>"-" is the NumberExtensionSeparator in POBOX:12345-123</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:anyAttribute namespace="##other" />
                </xs:complexType>
            </xs:element>
            <xs:element name="Firm" type="FirmType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Specification of a firm, company, organization, etc. It can be specified as part of an address that contains a street or a postbox. It is therefore different from
a large mail user address, which contains no street.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element ref="PostalCode" minOccurs="0" />
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="Type">
            <xs:annotation>
                <xs:documentation>Possible values are, not limited to: POBox and Freepost.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="Indicator">
            <xs:annotation>
                <xs:documentation>LOCKED BAG NO:1234 where the Indicator is NO: and Type is LOCKED BAG</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddressLine xal:AddressLine 0 unbounded
PostBoxNumber xal:PostBoxNumber (1) (1)
PostBoxNumberPrefix xal:PostBoxNumberPrefix 0 (1)
PostBoxNumberSuffix xal:PostBoxNumberSuffix 0 (1)
PostBoxNumberExtension xal:PostBoxNumberExtension 0 (1)
Firm xal:Firm 0 (1)
PostalCode xal:PostalCode 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Type xal:Type (Optional)
Indicator xal:Indicator (Optional)
<anyAttribute> Allowed namespace: '##other'
