Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: AllocAck
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:AllocAckGrp_Block_t
Containing Schema: fixml-allocation-base-5-0-SP2.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

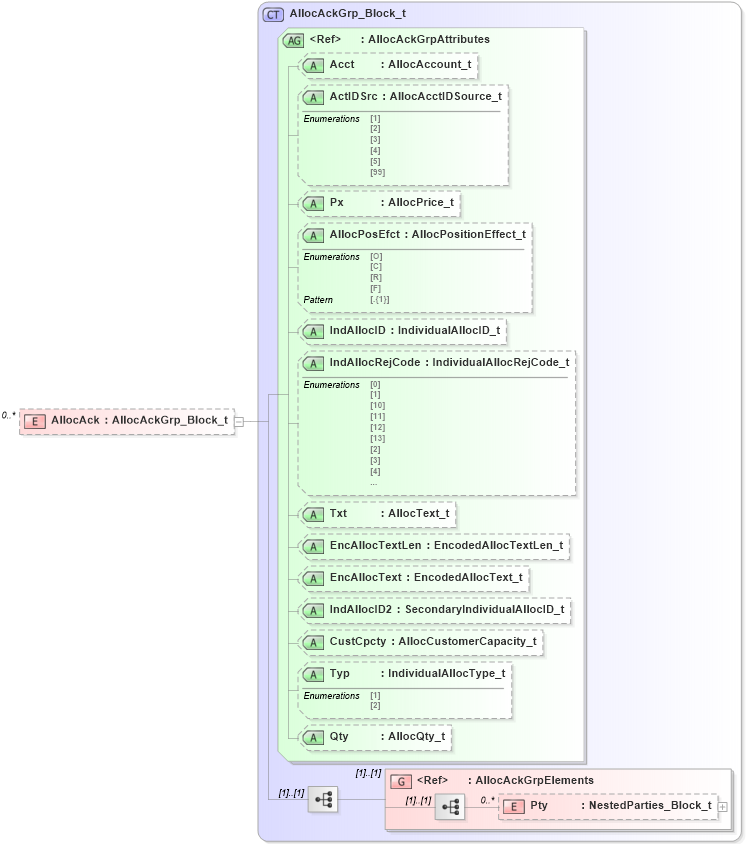

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocAckGrpElements in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Qty in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Typ in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into CustCpcty in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into IndAllocID2 in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into EncAllocText in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into EncAllocTextLen in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into IndAllocRejCode in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into IndAllocID in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocPosEfct in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Px in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into ActIDSrc in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Acct in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocAckGrpAttributes in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocAckGrp_Block_t in schema fixml-allocation-base-5-0-sp2_xsdXSD Diagram of AllocAck in schema fixml-allocation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="AllocAck" type="AllocAckGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
<xs:group> nsA:AllocAckGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Acct nsA:Acct Optional
ActIDSrc nsA:ActIDSrc Optional
Px nsA:Px Optional
AllocPosEfct nsA:AllocPosEfct Optional
IndAllocID nsA:IndAllocID Optional
IndAllocRejCode nsA:IndAllocRejCode Optional
Txt nsA:Txt Optional
EncAllocTextLen nsA:EncAllocTextLen Optional
EncAllocText nsA:EncAllocText Optional
IndAllocID2 nsA:IndAllocID2 Optional
CustCpcty nsA:CustCpcty Optional
Typ nsA:Typ Optional
Qty nsA:Qty Optional
Collapse Derivation Tree:
Documentation for Financial Information eXchange (FIX)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
