Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: AllocAckGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-allocation-base-5-0-SP2.xsd
Abstract

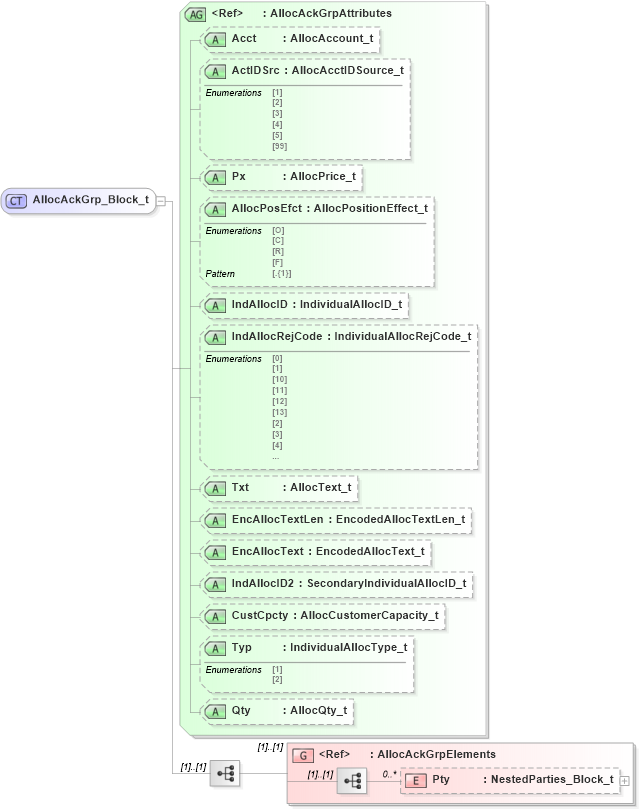

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocAckGrpElements in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Qty in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Typ in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into CustCpcty in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into IndAllocID2 in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into EncAllocText in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into EncAllocTextLen in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into IndAllocRejCode in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into IndAllocID in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocPosEfct in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Px in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into ActIDSrc in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Acct in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocAckGrpAttributes in schema fixml-allocation-base-5-0-sp2_xsdXSD Diagram of AllocAckGrp_Block_t in schema fixml-allocation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="AllocAckGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="AllocAckGrp" ComponentType="ImplicitBlockRepeating" Category="Allocation" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="AllocAckGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="AllocAckGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
<xs:group> nsA:AllocAckGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Acct nsA:Acct Optional
ActIDSrc nsA:ActIDSrc Optional
Px nsA:Px Optional
AllocPosEfct nsA:AllocPosEfct Optional
IndAllocID nsA:IndAllocID Optional
IndAllocRejCode nsA:IndAllocRejCode Optional
Txt nsA:Txt Optional
EncAllocTextLen nsA:EncAllocTextLen Optional
EncAllocText nsA:EncAllocText Optional
IndAllocID2 nsA:IndAllocID2 Optional
CustCpcty nsA:CustCpcty Optional
Typ nsA:Typ Optional
Qty nsA:Qty Optional
Collapse Derivation Tree:
Collapse References:
nsA:AllocAck, nsA:AllocAck
