Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: BaseTrdgRules
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:BaseTradingRules_Block_t
Containing Schema: fixml-components-base-5-0-SP2.xsd
MinOccurs 0
MaxOccurs 1
Abstract

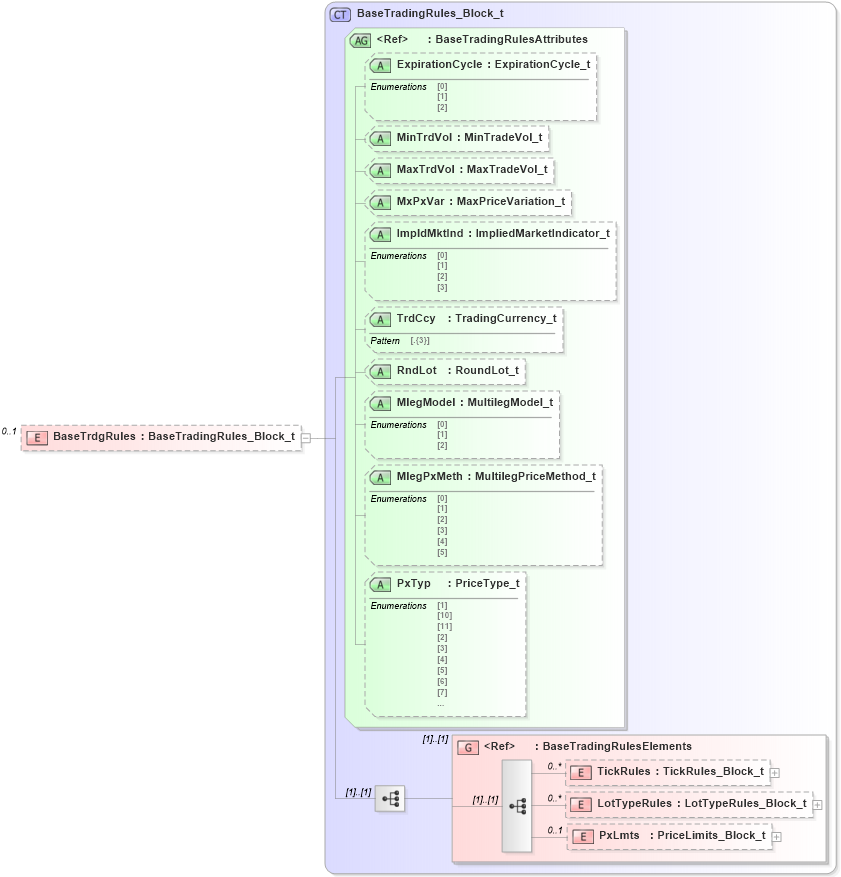

Collapse XSD Schema Diagram:
Drilldown into PxLmts in schema fixml-components-base-5-0-sp2_xsd Drilldown into LotTypeRules in schema fixml-components-base-5-0-sp2_xsd Drilldown into TickRules in schema fixml-components-base-5-0-sp2_xsd Drilldown into BaseTradingRulesElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into MlegPxMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into MlegModel in schema fixml-components-base-5-0-sp2_xsd Drilldown into RndLot in schema fixml-components-base-5-0-sp2_xsd Drilldown into TrdCcy in schema fixml-components-base-5-0-sp2_xsd Drilldown into ImpldMktInd in schema fixml-components-base-5-0-sp2_xsd Drilldown into MxPxVar in schema fixml-components-base-5-0-sp2_xsd Drilldown into MaxTrdVol in schema fixml-components-base-5-0-sp2_xsd Drilldown into MinTrdVol in schema fixml-components-base-5-0-sp2_xsd Drilldown into ExpirationCycle in schema fixml-components-base-5-0-sp2_xsd Drilldown into BaseTradingRulesAttributes in schema fixml-components-base-5-0-sp2_xsd Drilldown into BaseTradingRules_Block_t in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of BaseTrdgRules in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="BaseTrdgRules" type="BaseTradingRules_Block_t" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TickRules nsA:TickRules 0 unbounded
LotTypeRules nsA:LotTypeRules 0 unbounded
PxLmts nsA:PxLmts 0 1
<xs:group> nsA:BaseTradingRulesElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ExpirationCycle nsA:ExpirationCycle Optional
MinTrdVol nsA:MinTrdVol Optional
MaxTrdVol nsA:MaxTrdVol Optional
MxPxVar nsA:MxPxVar Optional
ImpldMktInd nsA:ImpldMktInd Optional
TrdCcy nsA:TrdCcy Optional
RndLot nsA:RndLot Optional
MlegModel nsA:MlegModel Optional
MlegPxMeth nsA:MlegPxMeth Optional
PxTyp nsA:PxTyp Optional
Collapse Derivation Tree:
