Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: ComplexEvents_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-components-base-5-0-SP2.xsd
Abstract

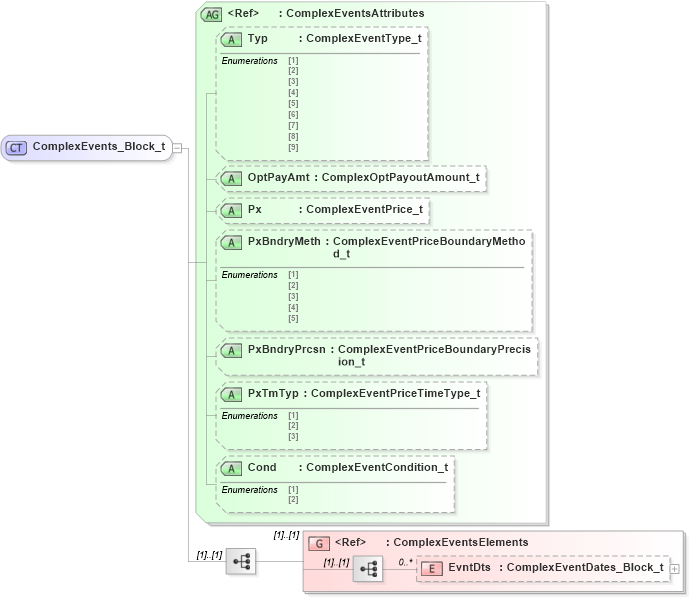

Collapse XSD Schema Diagram:
Drilldown into EvntDts in schema fixml-components-base-5-0-sp2_xsd Drilldown into ComplexEventsElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into Cond in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxTmTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxBndryPrcsn in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxBndryMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into Px in schema fixml-components-base-5-0-sp2_xsd Drilldown into OptPayAmt in schema fixml-components-base-5-0-sp2_xsd Drilldown into Typ in schema fixml-components-base-5-0-sp2_xsd Drilldown into ComplexEventsAttributes in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of ComplexEvents_Block_t in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="ComplexEvents_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="ComplexEvents" ComponentType="ImplicitBlockRepeating" Category="Common" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="ComplexEventsElements" />
    </xs:sequence>
    <xs:attributeGroup ref="ComplexEventsAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EvntDts nsA:EvntDts 0 unbounded
<xs:group> nsA:ComplexEventsElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Typ nsA:Typ Optional
OptPayAmt nsA:OptPayAmt Optional
Px nsA:Px Optional
PxBndryMeth nsA:PxBndryMeth Optional
PxBndryPrcsn nsA:PxBndryPrcsn Optional
PxTmTyp nsA:PxTmTyp Optional
Cond nsA:Cond Optional
Collapse Derivation Tree:
Collapse References:
nsA:CmplxEvnt
