Definition Type: ComplexType
Name: Instrument_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-components-base-5-0-SP2.xsd
Abstract

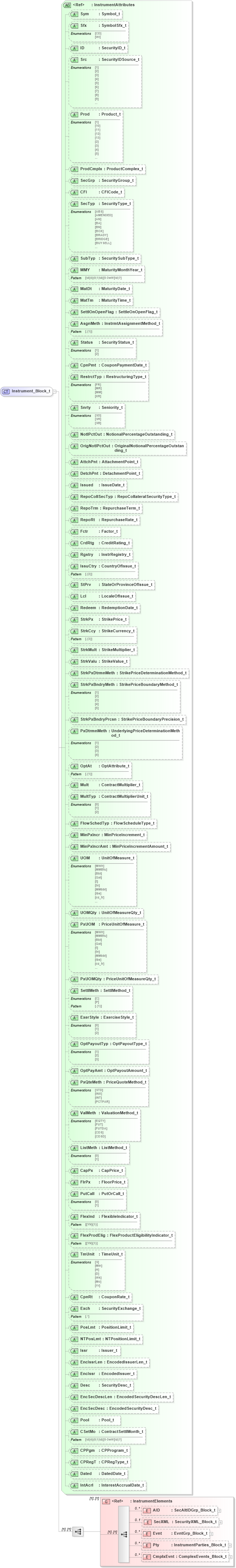

Collapse XSD Schema Diagram:
Drilldown into CmplxEvnt in schema fixml-components-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-components-base-5-0-sp2_xsd Drilldown into Evnt in schema fixml-components-base-5-0-sp2_xsd Drilldown into SecXML in schema fixml-components-base-5-0-sp2_xsd Drilldown into AID in schema fixml-components-base-5-0-sp2_xsd Drilldown into InstrumentElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into IntAcrl in schema fixml-components-base-5-0-sp2_xsd Drilldown into Dated in schema fixml-components-base-5-0-sp2_xsd Drilldown into CPRegT in schema fixml-components-base-5-0-sp2_xsd Drilldown into CPPgm in schema fixml-components-base-5-0-sp2_xsd Drilldown into CSetMo in schema fixml-components-base-5-0-sp2_xsd Drilldown into Pool in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncSecDesc in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncSecDescLen in schema fixml-components-base-5-0-sp2_xsd Drilldown into Desc in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncIssr in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncIssrLen in schema fixml-components-base-5-0-sp2_xsd Drilldown into Issr in schema fixml-components-base-5-0-sp2_xsd Drilldown into NTPosLmt in schema fixml-components-base-5-0-sp2_xsd Drilldown into PosLmt in schema fixml-components-base-5-0-sp2_xsd Drilldown into Exch in schema fixml-components-base-5-0-sp2_xsd Drilldown into CpnRt in schema fixml-components-base-5-0-sp2_xsd Drilldown into TmUnit in schema fixml-components-base-5-0-sp2_xsd Drilldown into FlexProdElig in schema fixml-components-base-5-0-sp2_xsd Drilldown into FlexInd in schema fixml-components-base-5-0-sp2_xsd Drilldown into PutCall in schema fixml-components-base-5-0-sp2_xsd Drilldown into FlrPx in schema fixml-components-base-5-0-sp2_xsd Drilldown into CapPx in schema fixml-components-base-5-0-sp2_xsd Drilldown into ListMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into ValMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxQteMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into OptPayAmt in schema fixml-components-base-5-0-sp2_xsd Drilldown into OptPayoutTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into ExerStyle in schema fixml-components-base-5-0-sp2_xsd Drilldown into SettlMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxUOMQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxUOM in schema fixml-components-base-5-0-sp2_xsd Drilldown into UOMQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into UOM in schema fixml-components-base-5-0-sp2_xsd Drilldown into MinPxIncrAmt in schema fixml-components-base-5-0-sp2_xsd Drilldown into MinPxIncr in schema fixml-components-base-5-0-sp2_xsd Drilldown into FlowSchedTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into MultTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into Mult in schema fixml-components-base-5-0-sp2_xsd Drilldown into OptAt in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxDtrmnMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkPxBndryPrcsn in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkPxBndryMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkPxDtrmnMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkValu in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkMult in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkCcy in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkPx in schema fixml-components-base-5-0-sp2_xsd Drilldown into Redeem in schema fixml-components-base-5-0-sp2_xsd Drilldown into Lcl in schema fixml-components-base-5-0-sp2_xsd Drilldown into StPrv in schema fixml-components-base-5-0-sp2_xsd Drilldown into IssuCtry in schema fixml-components-base-5-0-sp2_xsd Drilldown into Rgstry in schema fixml-components-base-5-0-sp2_xsd Drilldown into CrdRtg in schema fixml-components-base-5-0-sp2_xsd Drilldown into Fctr in schema fixml-components-base-5-0-sp2_xsd Drilldown into RepoRt in schema fixml-components-base-5-0-sp2_xsd Drilldown into RepoTrm in schema fixml-components-base-5-0-sp2_xsd Drilldown into RepoCollSecTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into Issued in schema fixml-components-base-5-0-sp2_xsd Drilldown into DetchPnt in schema fixml-components-base-5-0-sp2_xsd Drilldown into AttchPnt in schema fixml-components-base-5-0-sp2_xsd Drilldown into OrigNotlPctOut in schema fixml-components-base-5-0-sp2_xsd Drilldown into NotlPctOut in schema fixml-components-base-5-0-sp2_xsd Drilldown into Snrty in schema fixml-components-base-5-0-sp2_xsd Drilldown into RestrctTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into CpnPmt in schema fixml-components-base-5-0-sp2_xsd Drilldown into Status in schema fixml-components-base-5-0-sp2_xsd Drilldown into AsgnMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into SettlOnOpenFlag in schema fixml-components-base-5-0-sp2_xsd Drilldown into MatTm in schema fixml-components-base-5-0-sp2_xsd Drilldown into MatDt in schema fixml-components-base-5-0-sp2_xsd Drilldown into MMY in schema fixml-components-base-5-0-sp2_xsd Drilldown into SubTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into SecTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into CFI in schema fixml-components-base-5-0-sp2_xsd Drilldown into SecGrp in schema fixml-components-base-5-0-sp2_xsd Drilldown into ProdCmplx in schema fixml-components-base-5-0-sp2_xsd Drilldown into Prod in schema fixml-components-base-5-0-sp2_xsd Drilldown into Src in schema fixml-components-base-5-0-sp2_xsd Drilldown into ID in schema fixml-components-base-5-0-sp2_xsd Drilldown into Sfx in schema fixml-components-base-5-0-sp2_xsd Drilldown into Sym in schema fixml-components-base-5-0-sp2_xsd Drilldown into InstrumentAttributes in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of Instrument_Block_t in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="Instrument_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="Instrument" ComponentType="Block" Category="Common" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="InstrumentElements" />
    </xs:sequence>
    <xs:attributeGroup ref="InstrumentAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AID nsA:AID 0 unbounded
SecXML nsA:SecXML 0 1
Evnt nsA:Evnt 0 unbounded
Pty nsA:Pty 0 unbounded
CmplxEvnt nsA:CmplxEvnt 0 unbounded
<xs:group> nsA:InstrumentElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Sym nsA:Sym Optional
Sfx nsA:Sfx Optional
ID nsA:ID Optional
Src nsA:Src Optional
Prod nsA:Prod Optional
ProdCmplx nsA:ProdCmplx Optional
SecGrp nsA:SecGrp Optional
CFI nsA:CFI Optional
SecTyp nsA:SecTyp Optional
SubTyp nsA:SubTyp Optional
MMY nsA:MMY Optional
MatDt nsA:MatDt Optional
MatTm nsA:MatTm Optional
SettlOnOpenFlag nsA:SettlOnOpenFlag Optional
AsgnMeth nsA:AsgnMeth Optional
Status nsA:Status Optional
CpnPmt nsA:CpnPmt Optional
RestrctTyp nsA:RestrctTyp Optional
Snrty nsA:Snrty Optional
NotlPctOut nsA:NotlPctOut Optional
OrigNotlPctOut nsA:OrigNotlPctOut Optional
AttchPnt nsA:AttchPnt Optional
DetchPnt nsA:DetchPnt Optional
Issued nsA:Issued Optional
RepoCollSecTyp nsA:RepoCollSecTyp Optional
RepoTrm nsA:RepoTrm Optional
RepoRt nsA:RepoRt Optional
Fctr nsA:Fctr Optional
CrdRtg nsA:CrdRtg Optional
Rgstry nsA:Rgstry Optional
IssuCtry nsA:IssuCtry Optional
StPrv nsA:StPrv Optional
Lcl nsA:Lcl Optional
Redeem nsA:Redeem Optional
StrkPx nsA:StrkPx Optional
StrkCcy nsA:StrkCcy Optional
StrkMult nsA:StrkMult Optional
StrkValu nsA:StrkValu Optional
StrkPxDtrmnMeth nsA:StrkPxDtrmnMeth Optional
StrkPxBndryMeth nsA:StrkPxBndryMeth Optional
StrkPxBndryPrcsn nsA:StrkPxBndryPrcsn Optional
PxDtrmnMeth nsA:PxDtrmnMeth Optional
OptAt nsA:OptAt Optional
Mult nsA:Mult Optional
MultTyp nsA:MultTyp Optional
FlowSchedTyp nsA:FlowSchedTyp Optional
MinPxIncr nsA:MinPxIncr Optional
MinPxIncrAmt nsA:MinPxIncrAmt Optional
UOM nsA:UOM Optional
UOMQty nsA:UOMQty Optional
PxUOM nsA:PxUOM Optional
PxUOMQty nsA:PxUOMQty Optional
SettlMeth nsA:SettlMeth Optional
ExerStyle nsA:ExerStyle Optional
OptPayoutTyp nsA:OptPayoutTyp Optional
OptPayAmt nsA:OptPayAmt Optional
PxQteMeth nsA:PxQteMeth Optional
ValMeth nsA:ValMeth Optional
ListMeth nsA:ListMeth Optional
CapPx nsA:CapPx Optional
FlrPx nsA:FlrPx Optional
PutCall nsA:PutCall Optional
FlexInd nsA:FlexInd Optional
FlexProdElig nsA:FlexProdElig Optional
TmUnit nsA:TmUnit Optional
CpnRt nsA:CpnRt Optional
Exch nsA:Exch Optional
PosLmt nsA:PosLmt Optional
NTPosLmt nsA:NTPosLmt Optional
Issr nsA:Issr Optional
EncIssrLen nsA:EncIssrLen Optional
EncIssr nsA:EncIssr Optional
Desc nsA:Desc Optional
EncSecDescLen nsA:EncSecDescLen Optional
EncSecDesc nsA:EncSecDesc Optional
Pool nsA:Pool Optional
CSetMo nsA:CSetMo Optional
CPPgm nsA:CPPgm Optional
CPRegT nsA:CPRegT Optional
Dated nsA:Dated Optional
IntAcrl nsA:IntAcrl Optional
