Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: MarketDefinitionUpdateReport_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-marketstructure-base-5-0-SP2.xsd
Abstract
Documentation:
MarketDefinitionUpdateReport can be found in Volume3 of the specification

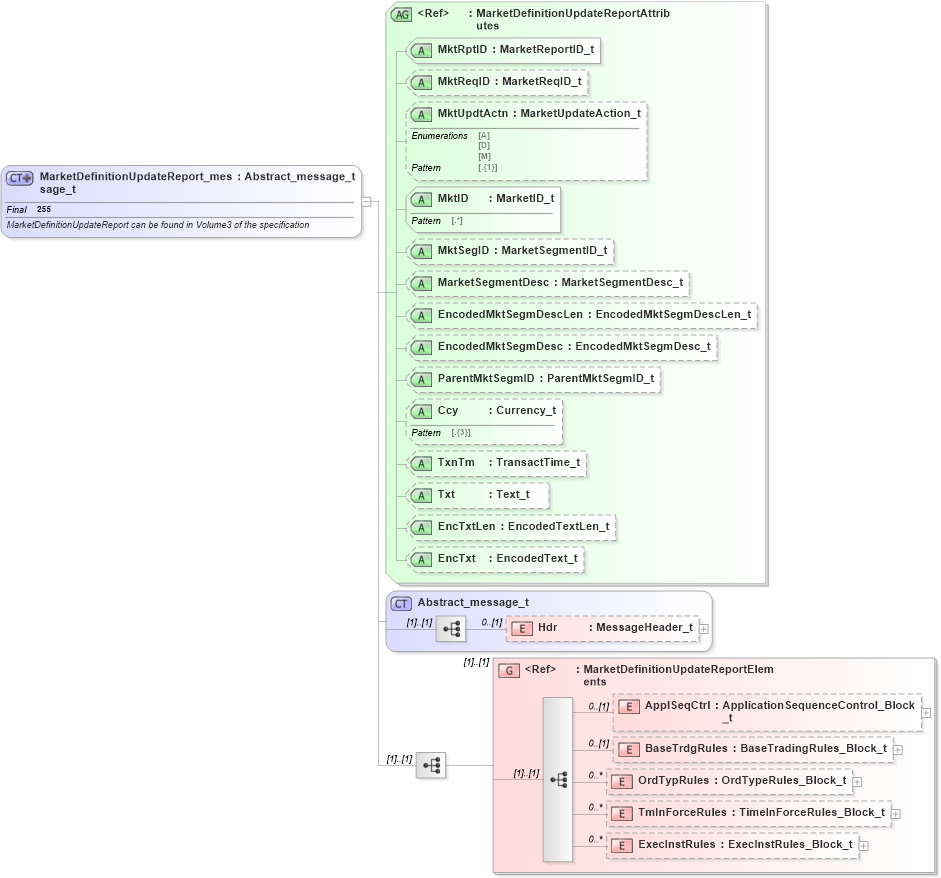

Collapse XSD Schema Diagram:
Drilldown into ExecInstRules in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into TmInForceRules in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into OrdTypRules in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into BaseTrdgRules in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into ApplSeqCtrl in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into MarketDefinitionUpdateReportElements in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into ParentMktSegmID in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into EncodedMktSegmDesc in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into EncodedMktSegmDescLen in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into MarketSegmentDesc in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into MktSegID in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into MktID in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into MktUpdtActn in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into MktReqID in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into MktRptID in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into MarketDefinitionUpdateReportAttributes in schema fixml-marketstructure-base-5-0-sp2_xsdXSD Diagram of MarketDefinitionUpdateReport_message_t in schema fixml-marketstructure-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="MarketDefinitionUpdateReport_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">MarketDefinitionUpdateReport can be found in Volume3 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="MarketDefinitionUpdateReport" ComponentType="Message" MsgID="107" Section="Pre Trade" Category="MarketStructureReferenceData" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="MarketDefinitionUpdateReportElements" />
            </xs:sequence>
            <xs:attributeGroup ref="MarketDefinitionUpdateReportAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
ApplSeqCtrl nsA:ApplSeqCtrl 0 (1)
BaseTrdgRules nsA:BaseTrdgRules 0 (1)
OrdTypRules nsA:OrdTypRules 0 unbounded
TmInForceRules nsA:TmInForceRules 0 unbounded
ExecInstRules nsA:ExecInstRules 0 unbounded
<xs:group> nsA:MarketDefinitionUpdateReportElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
MktRptID nsA:MktRptID Required
MktReqID nsA:MktReqID Optional
MktUpdtActn nsA:MktUpdtActn Optional
MktID nsA:MktID Required
MktSegID nsA:MktSegID Optional
MarketSegmentDesc nsA:MarketSegmentDesc Optional
EncodedMktSegmDescLen nsA:EncodedMktSegmDescLen Optional
EncodedMktSegmDesc nsA:EncodedMktSegmDesc Optional
ParentMktSegmID nsA:ParentMktSegmID Optional
Ccy nsA:Ccy Optional
TxnTm nsA:TxnTm Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:MktDefUpd
