Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: MarketSegmentGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-components-base-5-0-SP2.xsd
Abstract

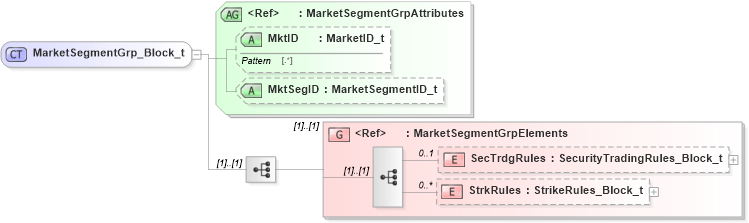

Collapse XSD Schema Diagram:
Drilldown into StrkRules in schema fixml-components-base-5-0-sp2_xsd Drilldown into SecTrdgRules in schema fixml-components-base-5-0-sp2_xsd Drilldown into MarketSegmentGrpElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into MktSegID in schema fixml-components-base-5-0-sp2_xsd Drilldown into MktID in schema fixml-components-base-5-0-sp2_xsd Drilldown into MarketSegmentGrpAttributes in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of MarketSegmentGrp_Block_t in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="MarketSegmentGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="MarketSegmentGrp" ComponentType="ImplicitBlockRepeating" Category="Common" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="MarketSegmentGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="MarketSegmentGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SecTrdgRules nsA:SecTrdgRules 0 1
StrkRules nsA:StrkRules 0 unbounded
<xs:group> nsA:MarketSegmentGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
MktID nsA:MktID Optional
MktSegID nsA:MktSegID Optional
Collapse Derivation Tree:
Collapse References:
nsA:MktSegGrp, nsA:MktSegGrp, nsA:MktSegGrp
