Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: MktSegGrp
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:MarketSegmentGrp_Block_t
Containing Schema: fixml-securitiesreference-base-5-0-SP2.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

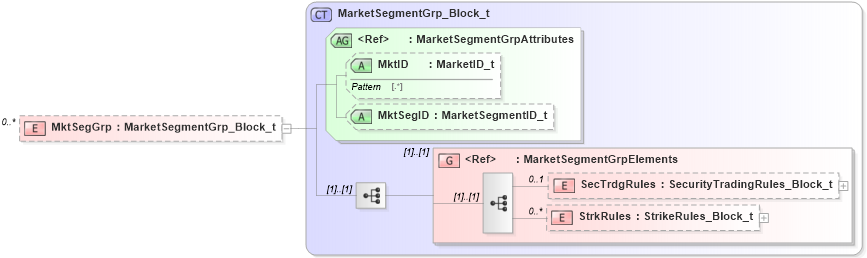

Collapse XSD Schema Diagram:
Drilldown into StrkRules in schema fixml-components-base-5-0-sp2_xsd Drilldown into SecTrdgRules in schema fixml-components-base-5-0-sp2_xsd Drilldown into MarketSegmentGrpElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into MktSegID in schema fixml-components-base-5-0-sp2_xsd Drilldown into MktID in schema fixml-components-base-5-0-sp2_xsd Drilldown into MarketSegmentGrpAttributes in schema fixml-components-base-5-0-sp2_xsd Drilldown into MarketSegmentGrp_Block_t in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of MktSegGrp in schema fixml-securitiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="MktSegGrp" type="MarketSegmentGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SecTrdgRules nsA:SecTrdgRules 0 1
StrkRules nsA:StrkRules 0 unbounded
<xs:group> nsA:MarketSegmentGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
MktID nsA:MktID Optional
MktSegID nsA:MktSegID Optional
Collapse Derivation Tree:
