Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: SecDefReq
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:SecurityDefinitionRequest_message_t
Containing Schema: fixml-securitiesreference-base-5-0-SP2.xsd
Abstract

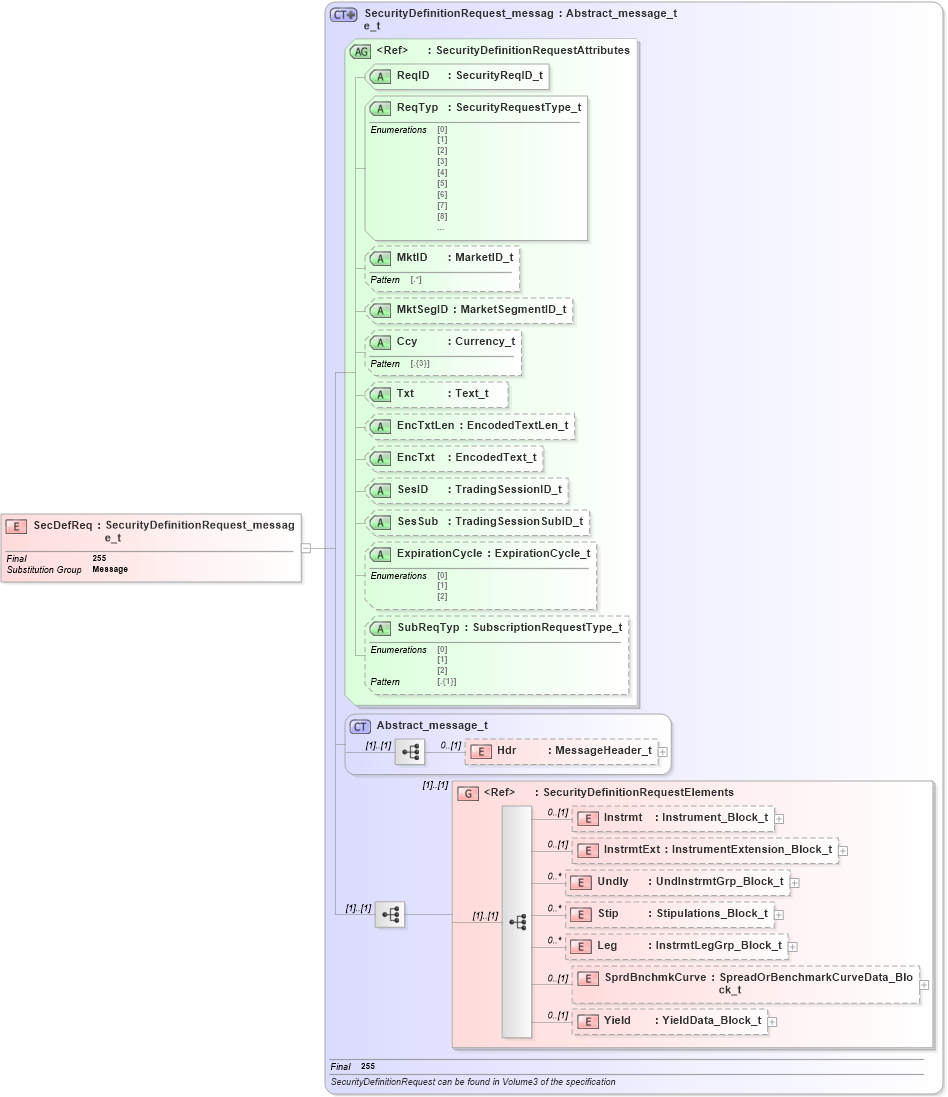

Collapse XSD Schema Diagram:
Drilldown into Yield in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SprdBnchmkCurve in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Leg in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Stip in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Undly in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into InstrmtExt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecurityDefinitionRequestElements in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into SubReqTyp in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into ExpirationCycle in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SesSub in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SesID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into MktSegID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into MktID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into ReqTyp in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into ReqID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecurityDefinitionRequestAttributes in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecurityDefinitionRequest_message_t in schema fixml-securitiesreference-base-5-0-sp2_xsdXSD Diagram of SecDefReq in schema fixml-securitiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="SecDefReq" type="SecurityDefinitionRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Instrmt nsA:Instrmt 0 (1)
InstrmtExt nsA:InstrmtExt 0 (1)
Undly nsA:Undly 0 unbounded
Stip nsA:Stip 0 unbounded
Leg nsA:Leg 0 unbounded
SprdBnchmkCurve nsA:SprdBnchmkCurve 0 (1)
Yield nsA:Yield 0 (1)
<xs:group> nsA:SecurityDefinitionRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
ReqTyp nsA:ReqTyp Required
MktID nsA:MktID Optional
MktSegID nsA:MktSegID Optional
Ccy nsA:Ccy Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
ExpirationCycle nsA:ExpirationCycle Optional
SubReqTyp nsA:SubReqTyp Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
