Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: TradeReportOrderDetail_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-tradecapture-base-5-0-SP2.xsd
Abstract

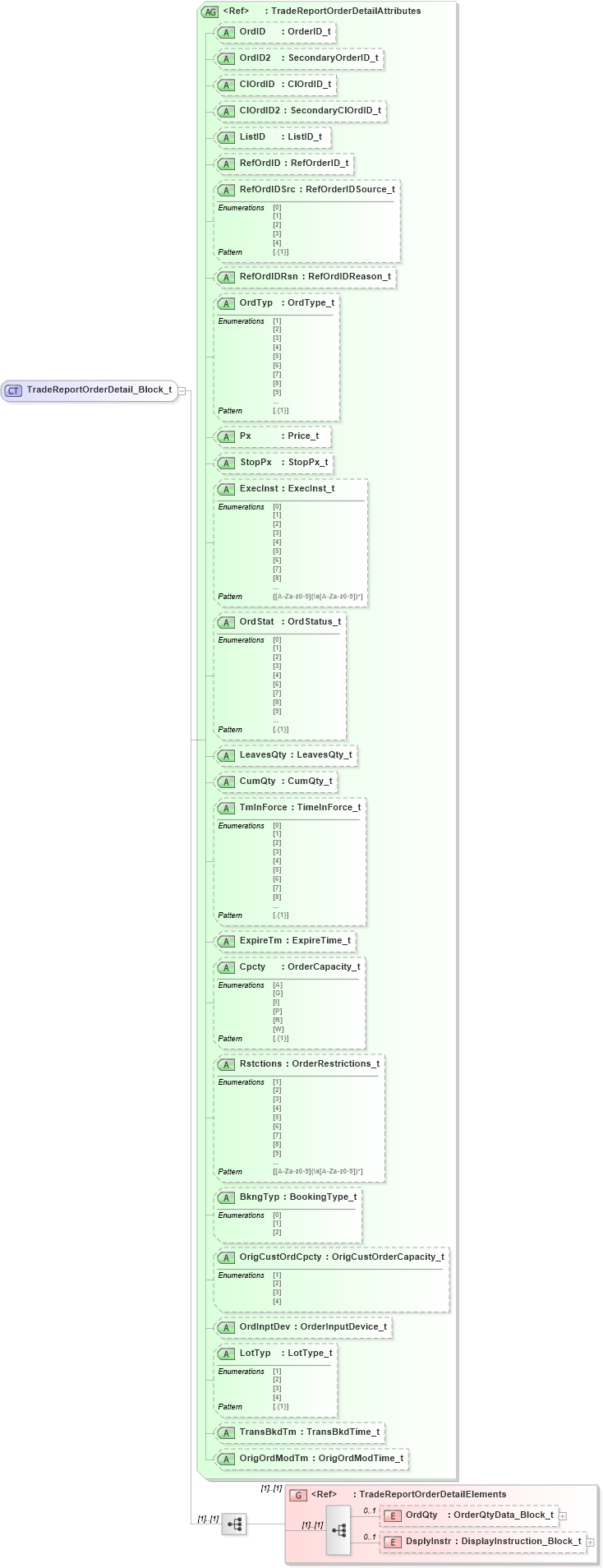

Collapse XSD Schema Diagram:
Drilldown into DsplyInstr in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into OrdQty in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TradeReportOrderDetailElements in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into OrigOrdModTm in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TransBkdTm in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into LotTyp in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into OrdInptDev in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into OrigCustOrdCpcty in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into BkngTyp in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Rstctions in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Cpcty in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ExpireTm in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TmInForce in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into CumQty in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into LeavesQty in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into OrdStat in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ExecInst in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into StopPx in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Px in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into OrdTyp in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into RefOrdIDRsn in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into RefOrdIDSrc in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into RefOrdID in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ListID in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ClOrdID2 in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ClOrdID in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into OrdID2 in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into OrdID in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TradeReportOrderDetailAttributes in schema fixml-tradecapture-base-5-0-sp2_xsdXSD Diagram of TradeReportOrderDetail_Block_t in schema fixml-tradecapture-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="TradeReportOrderDetail_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="TradeReportOrderDetail" ComponentType="ImplicitBlock" Category="TradeCapture" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="TradeReportOrderDetailElements" />
    </xs:sequence>
    <xs:attributeGroup ref="TradeReportOrderDetailAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrdQty nsA:OrdQty 0 1
DsplyInstr nsA:DsplyInstr 0 1
<xs:group> nsA:TradeReportOrderDetailElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
OrdID nsA:OrdID Optional
OrdID2 nsA:OrdID2 Optional
ClOrdID nsA:ClOrdID Optional
ClOrdID2 nsA:ClOrdID2 Optional
ListID nsA:ListID Optional
RefOrdID nsA:RefOrdID Optional
RefOrdIDSrc nsA:RefOrdIDSrc Optional
RefOrdIDRsn nsA:RefOrdIDRsn Optional
OrdTyp nsA:OrdTyp Optional
Px nsA:Px Optional
StopPx nsA:StopPx Optional
ExecInst nsA:ExecInst Optional
OrdStat nsA:OrdStat Optional
LeavesQty nsA:LeavesQty Optional
CumQty nsA:CumQty Optional
TmInForce nsA:TmInForce Optional
ExpireTm nsA:ExpireTm Optional
Cpcty nsA:Cpcty Optional
Rstctions nsA:Rstctions Optional
BkngTyp nsA:BkngTyp Optional
OrigCustOrdCpcty nsA:OrigCustOrdCpcty Optional
OrdInptDev nsA:OrdInptDev Optional
LotTyp nsA:LotTyp Optional
TransBkdTm nsA:TransBkdTm Optional
OrigOrdModTm nsA:OrigOrdModTm Optional
Collapse Derivation Tree:
Collapse References:
nsA:TrdRptOrdDetl, nsA:TrdRptOrdDetl
