Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: TradingSessionList_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-marketstructure-base-5-0-SP2.xsd
Abstract
Documentation:
TradingSessionList can be found in Volume3 of the specification

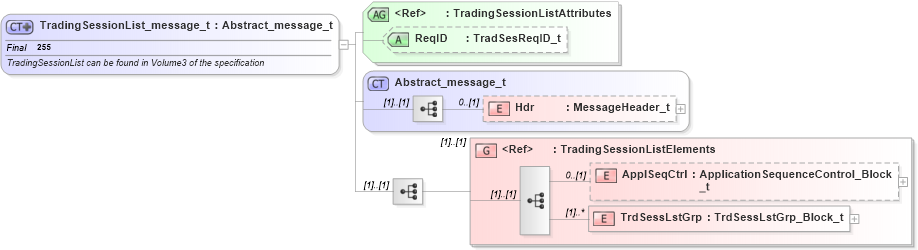

Collapse XSD Schema Diagram:
Drilldown into TrdSessLstGrp in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into ApplSeqCtrl in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into TradingSessionListElements in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into ReqID in schema fixml-marketstructure-base-5-0-sp2_xsd Drilldown into TradingSessionListAttributes in schema fixml-marketstructure-base-5-0-sp2_xsdXSD Diagram of TradingSessionList_message_t in schema fixml-marketstructure-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="TradingSessionList_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">TradingSessionList can be found in Volume3 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="TradingSessionList" ComponentType="Message" MsgID="100" Section="Pre Trade" Category="MarketStructureReferenceData" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="TradingSessionListElements" />
            </xs:sequence>
            <xs:attributeGroup ref="TradingSessionListAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
ApplSeqCtrl nsA:ApplSeqCtrl 0 (1)
TrdSessLstGrp nsA:TrdSessLstGrp (1) unbounded
<xs:group> nsA:TradingSessionListElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Optional
Collapse Derivation Tree:
Collapse References:
nsA:TrdgSesList
