Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: TrdCaptRptReqAck
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:TradeCaptureReportRequestAck_message_t
Containing Schema: fixml-tradecapture-base-5-0-SP2.xsd
Abstract

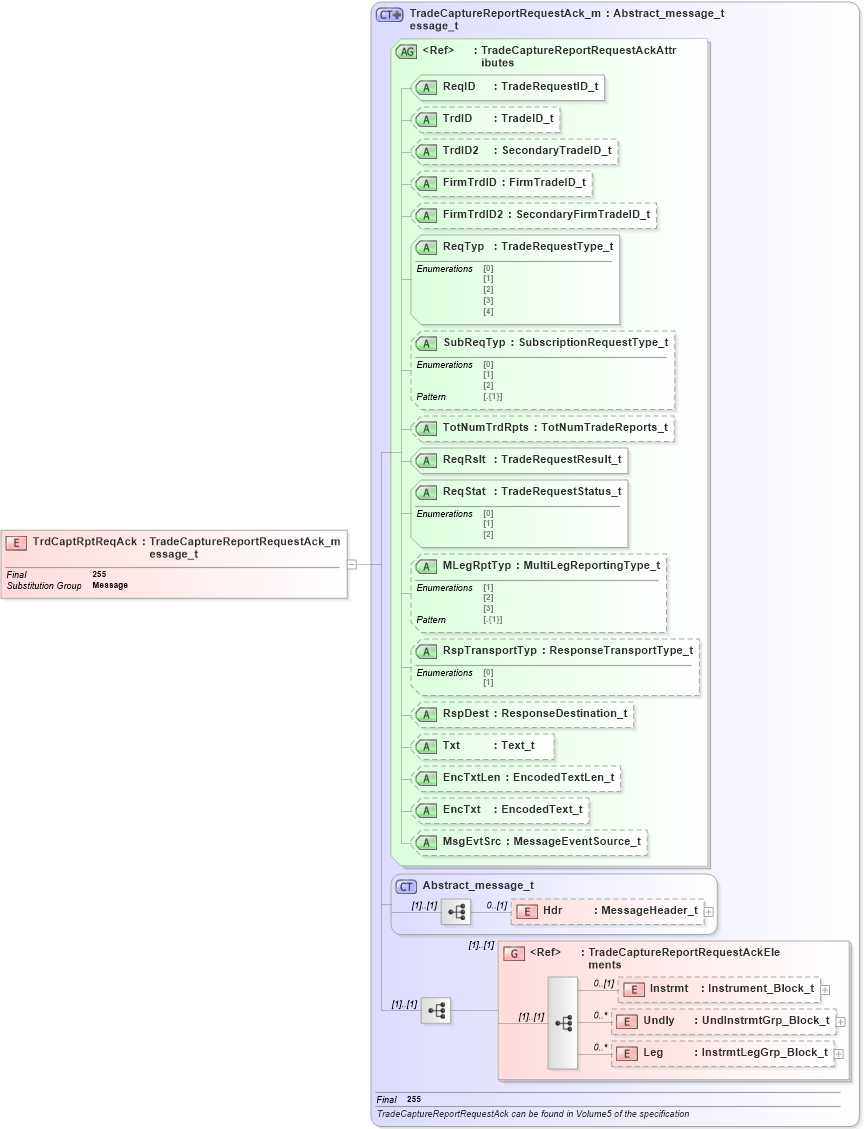

Collapse XSD Schema Diagram:
Drilldown into Leg in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Undly in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TradeCaptureReportRequestAckElements in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into MsgEvtSrc in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into RspDest in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into RspTransportTyp in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into MLegRptTyp in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ReqStat in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ReqRslt in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TotNumTrdRpts in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into SubReqTyp in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ReqTyp in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into FirmTrdID2 in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into FirmTrdID in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TrdID2 in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TrdID in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ReqID in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TradeCaptureReportRequestAckAttributes in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TradeCaptureReportRequestAck_message_t in schema fixml-tradecapture-base-5-0-sp2_xsdXSD Diagram of TrdCaptRptReqAck in schema fixml-tradecapture-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="TrdCaptRptReqAck" type="TradeCaptureReportRequestAck_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Instrmt nsA:Instrmt 0 (1)
Undly nsA:Undly 0 unbounded
Leg nsA:Leg 0 unbounded
<xs:group> nsA:TradeCaptureReportRequestAckElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
TrdID nsA:TrdID Optional
TrdID2 nsA:TrdID2 Optional
FirmTrdID nsA:FirmTrdID Optional
FirmTrdID2 nsA:FirmTrdID2 Optional
ReqTyp nsA:ReqTyp Required
SubReqTyp nsA:SubReqTyp Optional
TotNumTrdRpts nsA:TotNumTrdRpts Optional
ReqRslt nsA:ReqRslt Required
ReqStat nsA:ReqStat Required
MLegRptTyp nsA:MLegRptTyp Optional
RspTransportTyp nsA:RspTransportTyp Optional
RspDest nsA:RspDest Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
MsgEvtSrc nsA:MsgEvtSrc Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
