Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: beneficiary
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:Routing
Containing Schema: fpml-shared-4-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The ultimate beneficiary of the funds. The beneficiary can be identified either by an account at the beneficiaryBank (qv) or by explicit routingInformation. This element provides for the latter.

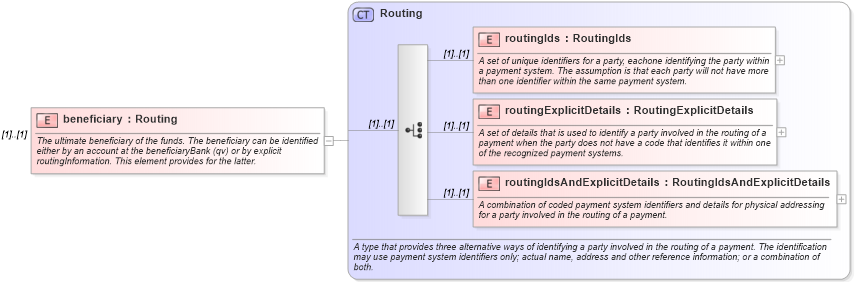

Collapse XSD Schema Diagram:
Drilldown into routingIdsAndExplicitDetails in schema fpml-shared-4-0_xsd Drilldown into routingExplicitDetails in schema fpml-shared-4-0_xsd Drilldown into routingIds in schema fpml-shared-4-0_xsd Drilldown into Routing in schema fpml-shared-4-0_xsdXSD Diagram of beneficiary in schema fpml-shared-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="beneficiary" type="Routing">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The ultimate beneficiary of the funds. The beneficiary can be identified either by an account at the beneficiaryBank (qv) or by explicit routingInformation. This element provides for the latter.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
routingIds nsA:routingIds (1) (1)
routingExplicitDetails nsA:routingExplicitDetails (1) (1)
routingIdsAndExplicitDetails nsA:routingIdsAndExplicitDetails (1) (1)
Collapse Derivation Tree:
