Definition Type: ComplexType
Name: Routing
Namespace: http://www.fpml.org/2003/FpML-4-0
Containing Schema: fpml-shared-4-0.xsd
Abstract
Documentation:
A type that provides three alternative ways of identifying a party involved in the routing of a payment. The identification may use payment system identifiers only; actual name, address and other reference information; or a combination of both.

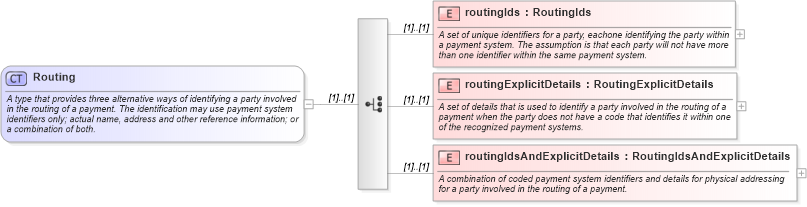

Collapse XSD Schema Diagram:
Drilldown into routingIdsAndExplicitDetails in schema fpml-shared-4-0_xsd Drilldown into routingExplicitDetails in schema fpml-shared-4-0_xsd Drilldown into routingIds in schema fpml-shared-4-0_xsdXSD Diagram of Routing in schema fpml-shared-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Routing">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that provides three alternative ways of identifying a party involved in the routing of a payment. The identification may use payment system identifiers only; actual name, address and other reference information; or a combination of both.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:element name="routingIds" type="RoutingIds">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A set of unique identifiers for a party, eachone identifying the party within a payment system. The assumption is that each party will not have more than one identifier within the same payment system.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="routingExplicitDetails" type="RoutingExplicitDetails">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A set of details that is used to identify a party involved in the routing of a payment when the party does not have a code that identifies it within one of the recognized payment systems.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="routingIdsAndExplicitDetails" type="RoutingIdsAndExplicitDetails">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A combination of coded payment system identifiers and details for physical addressing for a party involved in the routing of a payment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
routingIds nsA:routingIds (1) (1)
routingExplicitDetails nsA:routingExplicitDetails (1) (1)
routingIdsAndExplicitDetails nsA:routingIdsAndExplicitDetails (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:beneficiary, nsA:beneficiary, nsA:beneficiaryBank, nsA:beneficiaryBanknsA:correspondentInformation,
