Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Message
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:Document
Containing Schema: fpml-msg-4-0.xsd
Abstract True
Documentation:
A type defining the basic structure of all FpML messages which is refined by its derived types.

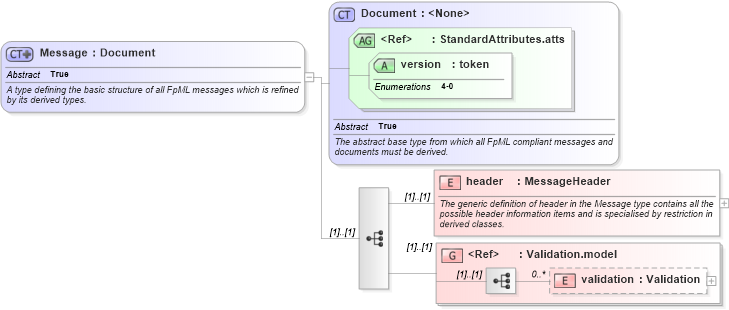

Collapse XSD Schema Diagram:
Drilldown into validation in schema fpml-doc-4-0_xsd Drilldown into Validation.model in schema fpml-doc-4-0_xsd Drilldown into header in schema fpml-msg-4-0_xsd Drilldown into version in schema fpml-doc-4-0_xsd Drilldown into StandardAttributes.atts in schema fpml-doc-4-0_xsd Drilldown into Document in schema fpml-doc-4-0_xsdXSD Diagram of Message in schema fpml-msg-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Message" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the basic structure of all FpML messages which is refined by its derived types.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Document">
            <xsd:sequence>
                <xsd:element name="header" type="MessageHeader">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The generic definition of header in the Message type contains all the possible header information items and is specialised by restriction in derived classes.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="Validation.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsA:header (1) (1)
validation nsA:validation 0 unbounded
<xs:group> nsA:Validation.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
version nsA:version Required
Collapse Derivation Tree:
Collapse References:
nsA:NotificationMessage, nsA:RequestMessage, nsA:ResponseMessage
