Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RequestMessage
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:Message
Containing Schema: fpml-msg-4-0.xsd
Abstract True
Documentation:
A type defining the basic content of a message that requests the receiver to perform some business operation determined by the message type and its content.

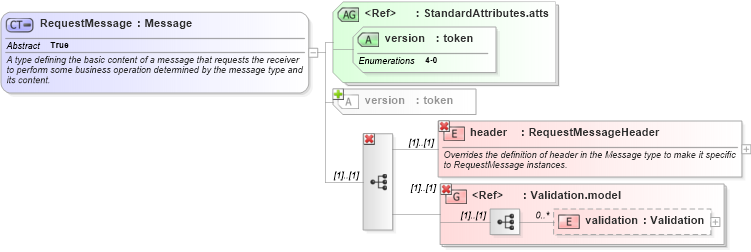

Collapse XSD Schema Diagram:
Drilldown into validation in schema fpml-doc-4-0_xsd Drilldown into Validation.model in schema fpml-doc-4-0_xsd Drilldown into header in schema fpml-msg-4-0_xsd Drilldown into version in schema fpml-doc-4-0_xsd Drilldown into version in schema fpml-doc-4-0_xsd Drilldown into StandardAttributes.atts in schema fpml-doc-4-0_xsdXSD Diagram of RequestMessage in schema fpml-msg-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RequestMessage" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the basic content of a message that requests the receiver to perform some business operation determined by the message type and its content.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:restriction base="Message">
            <xsd:sequence>
                <xsd:element name="header" type="RequestMessageHeader">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Overrides the definition of header in the Message type to make it specific to RequestMessage instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="Validation.model" />
            </xsd:sequence>
            <xsd:attributeGroup ref="StandardAttributes.atts" />
        </xsd:restriction>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsA:header (1) (1)
validation nsA:validation 0 unbounded
header nsA:header (1) (1)
<xs:group> nsA:Validation.model (1) (1)
<xs:group> nsA:Validation.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
version nsA:version Required
Collapse Derivation Tree:
Collapse References:
nsA:CancelTradeConfirmation, nsA:CancelTradeMatch, nsA:ConfirmTrade, nsA:ModifyTradeConfirmation, nsA:ModifyTradeMatch, nsA:RequestQuote, nsA:RequestTradeConfirmation, nsA:RequestTradeMatch, nsA:RequestTradeStatus
