Docs for schema item relativeDates in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	relativeDates
Namespace:	http://www.fpml.org/2003/FpML-4-0
Type:	nsA:RelativeDates
Containing Schema:	fpml-shared-4-0.xsd
MinOccurs	(1)
MaxOccurs	(1)
Abstract
Documentation:	A series of dates specified as some offset to another series of dates (the anchor dates).

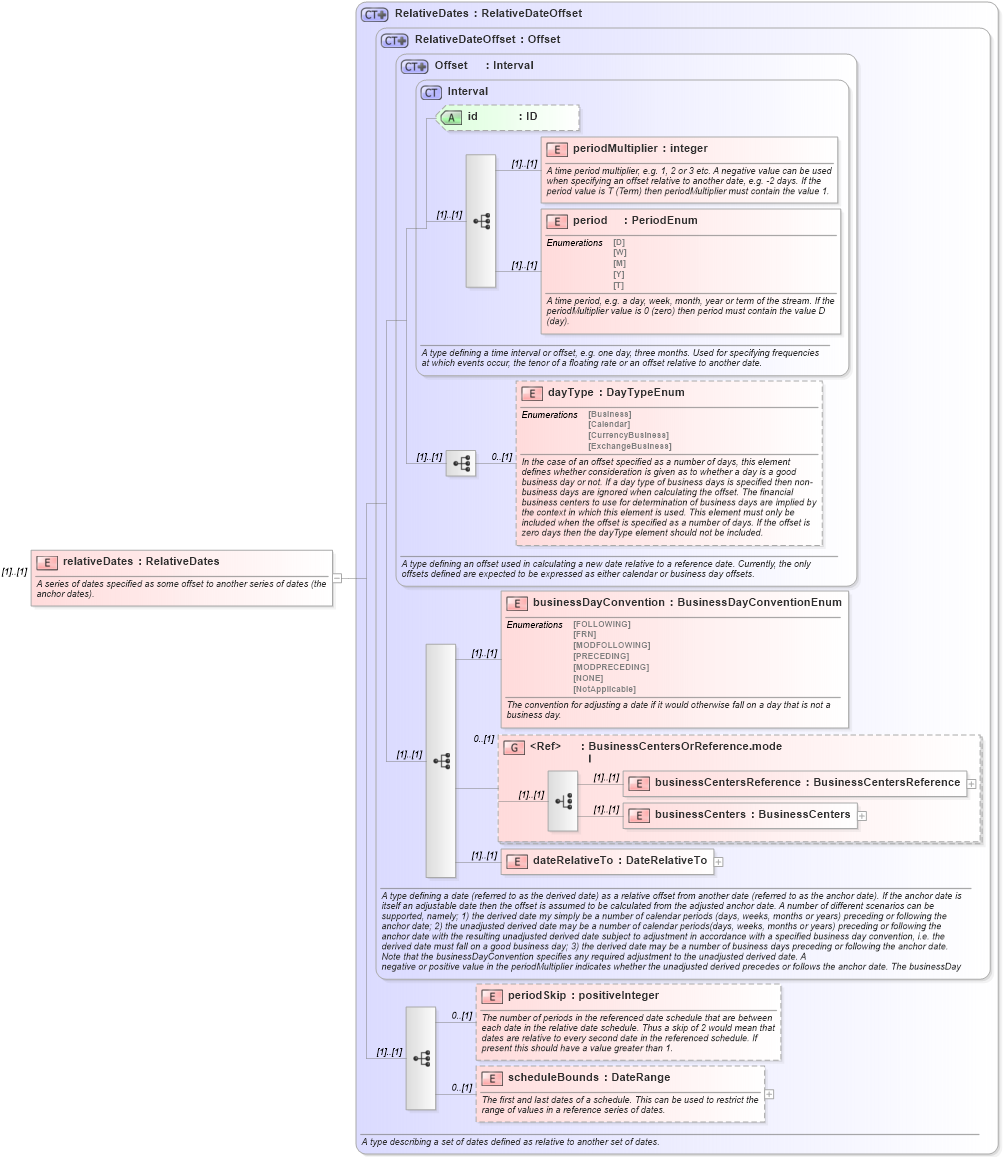

XSD Schema Diagram:

XSD Diagram of relativeDates in schema fpml-shared-4-0_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="relativeDates" type="RelativeDates">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A series of dates specified as some offset to another series of dates (the anchor dates).</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
periodMultiplier	nsA:periodMultiplier	(1)	(1)
period	nsA:period	(1)	(1)
dayType	nsA:dayType	0	(1)
businessDayConvention	nsA:businessDayConvention	(1)	(1)
businessCentersReference	nsA:businessCentersReference	(1)	(1)
businessCenters	nsA:businessCenters	(1)	(1)
dateRelativeTo	nsA:dateRelativeTo	(1)	(1)
periodSkip	nsA:periodSkip	0	(1)
scheduleBounds	nsA:scheduleBounds	0	(1)
<xs:group>	nsA:BusinessCentersOrReference.model	0	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsA:id		(Optional)

Derivation Tree:
	nsA:Interval nsA:Offset nsA:RelativeDateOffset nsA:RelativeDates *relativeDates*
