<xsd:complexType name="Interval">
<xsd:annotation>
<xsd:documentation xml:lang="en">A type defining a time interval or offset, e.g. one day, three months. Used for specifying frequencies at which events occur, the tenor of a floating rate or an offset relative to another date.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="periodMultiplier" type="xsd:integer">
<xsd:annotation>
<xsd:documentation xml:lang="en">A time period multiplier, e.g. 1, 2 or 3 etc. A negative value can be used when specifying an offset relative to another date, e.g. -2 days. If the period value is T (Term) then periodMultiplier must contain the value 1.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="period" type="PeriodEnum">
<xsd:annotation>
<xsd:documentation xml:lang="en">A time period, e.g. a day, week, month, year or term of the stream. If the periodMultiplier value is 0 (zero) then period must contain the value D (day).</xsd:documentation>
</xsd:annotation>
<!-- edited, BAL -->
</xsd:element>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
|

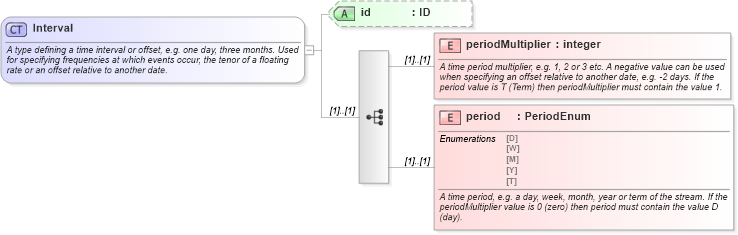

XSD Schema Diagram:
