Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: AdjustedRelativeDateOffset
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:RelativeDateOffset
Containing Schema: fpml-shared-5-0.xsd
Abstract
Documentation:
A type defining a date (referred to as the derived date) as a relative offset from another date (referred to as the anchor date) plus optional date adjustments.

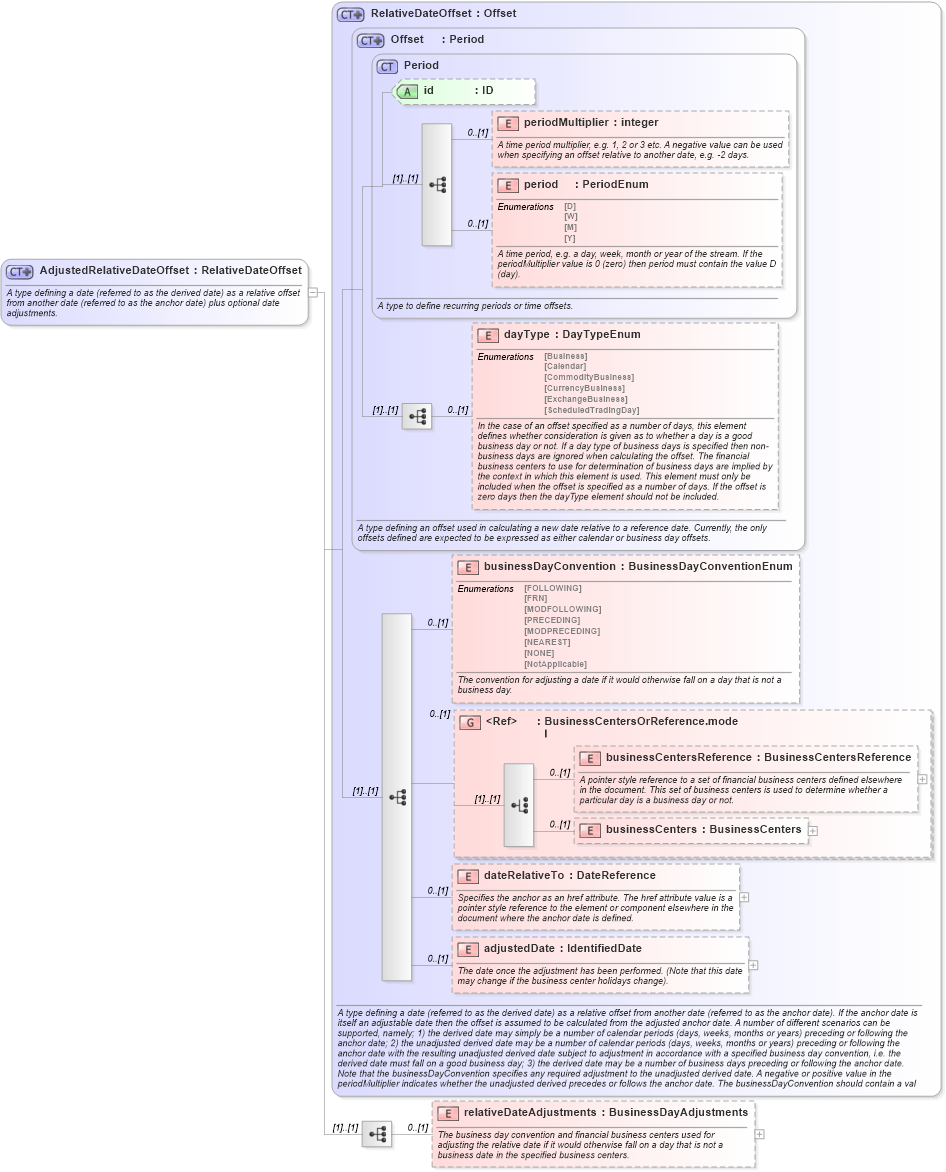

Collapse XSD Schema Diagram:
Drilldown into relativeDateAdjustments in schema fpml-shared-5-0_xsd1 Drilldown into adjustedDate in schema fpml-shared-5-0_xsd1 Drilldown into dateRelativeTo in schema fpml-shared-5-0_xsd1 Drilldown into businessCenters in schema fpml-shared-5-0_xsd1 Drilldown into businessCentersReference in schema fpml-shared-5-0_xsd1 Drilldown into BusinessCentersOrReference.model in schema fpml-shared-5-0_xsd1 Drilldown into businessDayConvention in schema fpml-shared-5-0_xsd1 Drilldown into dayType in schema fpml-shared-5-0_xsd1 Drilldown into period in schema fpml-shared-5-0_xsd1 Drilldown into periodMultiplier in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Period in schema fpml-shared-5-0_xsd1 Drilldown into Offset in schema fpml-shared-5-0_xsd1 Drilldown into RelativeDateOffset in schema fpml-shared-5-0_xsd1XSD Diagram of AdjustedRelativeDateOffset in schema fpml-shared-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="AdjustedRelativeDateOffset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining a date (referred to as the derived date) as a relative offset from another date (referred to as the anchor date) plus optional date adjustments.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="RelativeDateOffset">
            <xsd:sequence>
                <xsd:element name="relativeDateAdjustments" type="BusinessDayAdjustments" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The business day convention and financial business centers used for adjusting the relative date if it would otherwise fall on a day that is not a business date in the specified business centers.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsB:periodMultiplier 0 (1)
period nsB:period 0 (1)
dayType nsB:dayType 0 (1)
businessDayConvention nsB:businessDayConvention 0 (1)
businessCentersReference nsB:businessCentersReference 0 (1)
businessCenters nsB:businessCenters 0 (1)
dateRelativeTo nsB:dateRelativeTo 0 (1)
adjustedDate nsB:adjustedDate 0 (1)
relativeDateAdjustments nsB:relativeDateAdjustments 0 (1)
<xs:group> nsB:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:relativeEffectiveDate
