Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: relativeEffectiveDate
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:AdjustedRelativeDateOffset
Containing Schema: fpml-ird-5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Defines the effective date.

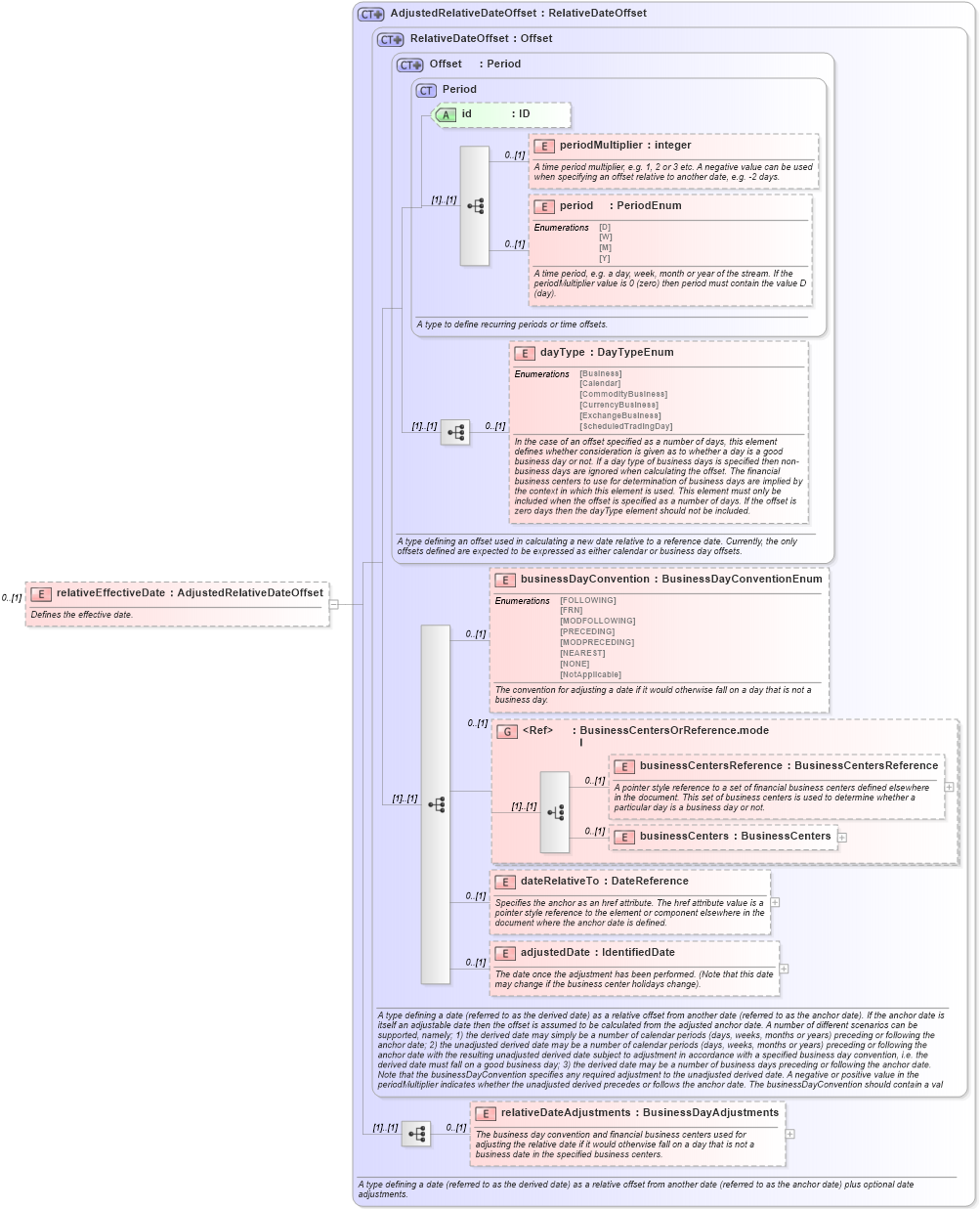

Collapse XSD Schema Diagram:
Drilldown into relativeDateAdjustments in schema fpml-shared-5-0_xsd1 Drilldown into adjustedDate in schema fpml-shared-5-0_xsd1 Drilldown into dateRelativeTo in schema fpml-shared-5-0_xsd1 Drilldown into businessCenters in schema fpml-shared-5-0_xsd1 Drilldown into businessCentersReference in schema fpml-shared-5-0_xsd1 Drilldown into BusinessCentersOrReference.model in schema fpml-shared-5-0_xsd1 Drilldown into businessDayConvention in schema fpml-shared-5-0_xsd1 Drilldown into dayType in schema fpml-shared-5-0_xsd1 Drilldown into period in schema fpml-shared-5-0_xsd1 Drilldown into periodMultiplier in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Period in schema fpml-shared-5-0_xsd1 Drilldown into Offset in schema fpml-shared-5-0_xsd1 Drilldown into RelativeDateOffset in schema fpml-shared-5-0_xsd1 Drilldown into AdjustedRelativeDateOffset in schema fpml-shared-5-0_xsd1XSD Diagram of relativeEffectiveDate in schema fpml-ird-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="relativeEffectiveDate" type="AdjustedRelativeDateOffset" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the effective date.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsB:periodMultiplier 0 (1)
period nsB:period 0 (1)
dayType nsB:dayType 0 (1)
businessDayConvention nsB:businessDayConvention 0 (1)
businessCentersReference nsB:businessCentersReference 0 (1)
businessCenters nsB:businessCenters 0 (1)
dateRelativeTo nsB:dateRelativeTo 0 (1)
adjustedDate nsB:adjustedDate 0 (1)
relativeDateAdjustments nsB:relativeDateAdjustments 0 (1)
<xs:group> nsB:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
