Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: coalPhysicalLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:CoalPhysicalLeg
Containing Schema: fpml-com-5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Physically settled coal leg.

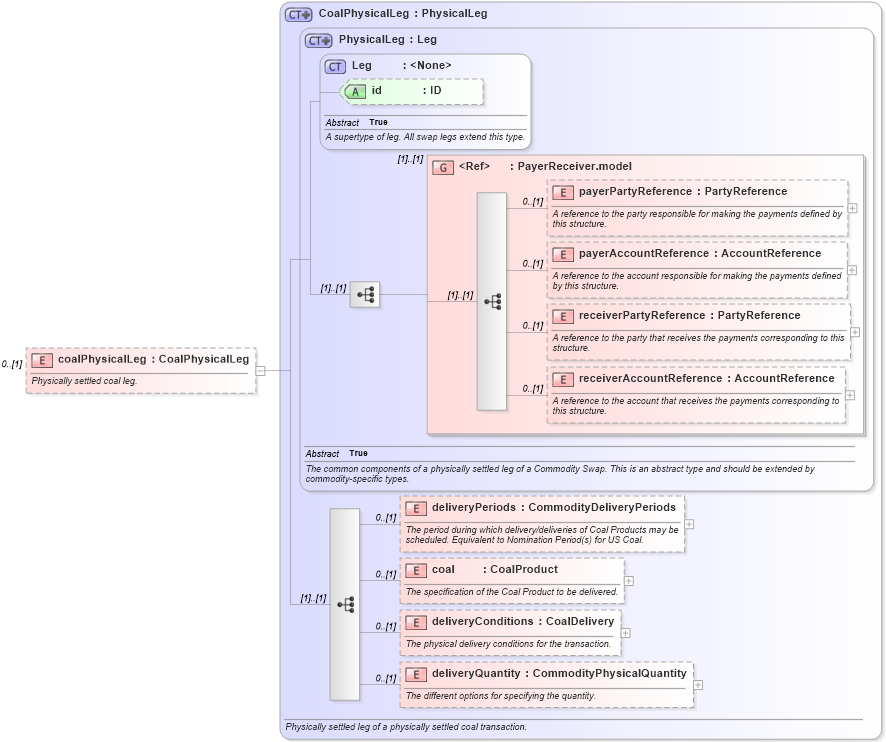

Collapse XSD Schema Diagram:
Drilldown into deliveryQuantity in schema fpml-com-5-0_xsd1 Drilldown into deliveryConditions in schema fpml-com-5-0_xsd1 Drilldown into coal in schema fpml-com-5-0_xsd1 Drilldown into deliveryPeriods in schema fpml-com-5-0_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into receiverPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into payerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into payerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into PayerReceiver.model in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Leg in schema fpml-shared-5-0_xsd1 Drilldown into PhysicalLeg in schema fpml-com-5-0_xsd1 Drilldown into CoalPhysicalLeg in schema fpml-com-5-0_xsd1XSD Diagram of coalPhysicalLeg in schema fpml-com-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="coalPhysicalLeg" type="CoalPhysicalLeg" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Physically settled coal leg.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsB:payerPartyReference 0 (1)
payerAccountReference nsB:payerAccountReference 0 (1)
receiverPartyReference nsB:receiverPartyReference 0 (1)
receiverAccountReference nsB:receiverAccountReference 0 (1)
deliveryPeriods nsB:deliveryPeriods 0 (1)
coal nsB:coal 0 (1)
deliveryConditions nsB:deliveryConditions 0 (1)
deliveryQuantity nsB:deliveryQuantity 0 (1)
<xs:group> nsB:PayerReceiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
