Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: AbstractFacilityEvent
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:AbstractLoanServicingEvent
Containing Schema: fpml-loan-5-10.xsd
Abstract True
Documentation:
An abstract base type for all facility-level business events.

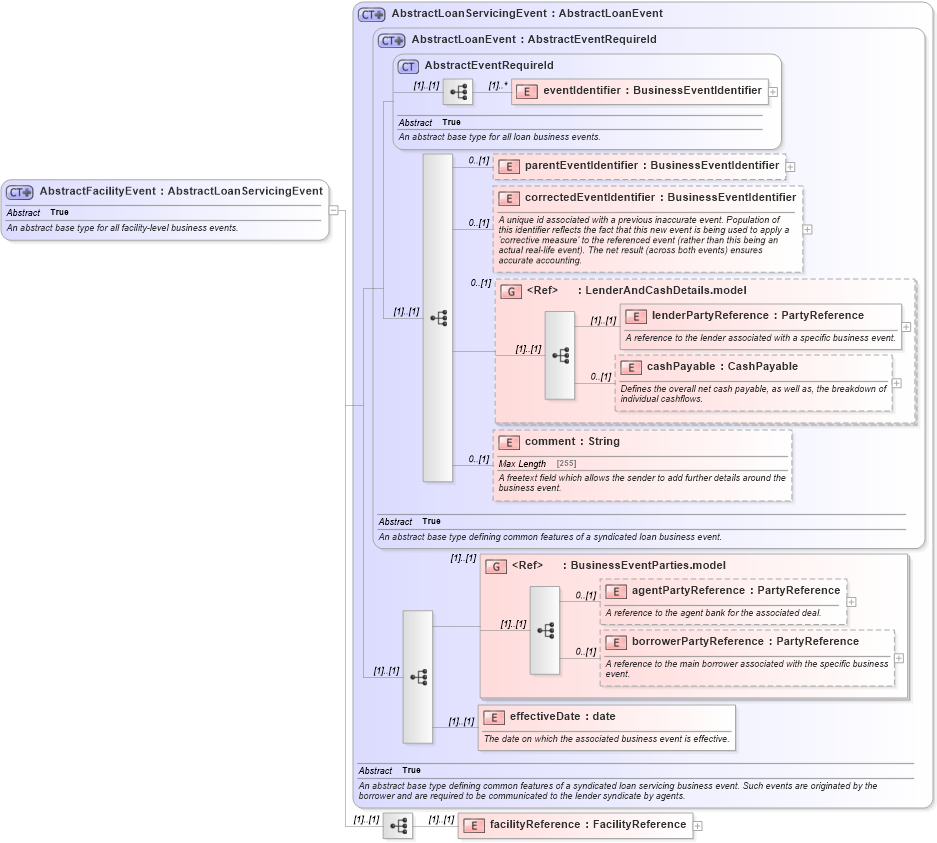

Collapse XSD Schema Diagram:
Drilldown into facilityReference in schema fpml-loan-5-10_xsd Drilldown into effectiveDate in schema fpml-loan-5-10_xsd Drilldown into borrowerPartyReference in schema fpml-loan-5-10_xsd Drilldown into agentPartyReference in schema fpml-loan-5-10_xsd Drilldown into BusinessEventParties.model in schema fpml-loan-5-10_xsd Drilldown into comment in schema fpml-loan-5-10_xsd Drilldown into cashPayable in schema fpml-loan-5-10_xsd Drilldown into lenderPartyReference in schema fpml-loan-5-10_xsd Drilldown into LenderAndCashDetails.model in schema fpml-loan-5-10_xsd Drilldown into correctedEventIdentifier in schema fpml-loan-5-10_xsd Drilldown into parentEventIdentifier in schema fpml-loan-5-10_xsd Drilldown into eventIdentifier in schema fpml-loan-5-10_xsd Drilldown into AbstractEventRequireId in schema fpml-loan-5-10_xsd Drilldown into AbstractLoanEvent in schema fpml-loan-5-10_xsd Drilldown into AbstractLoanServicingEvent in schema fpml-loan-5-10_xsdXSD Diagram of AbstractFacilityEvent in schema fpml-loan-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="AbstractFacilityEvent" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An abstract base type for all facility-level business events.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="AbstractLoanServicingEvent">
            <xsd:sequence>
                <xsd:element name="facilityReference" type="FacilityReference" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
eventIdentifier nsA:eventIdentifier (1) unbounded
parentEventIdentifier nsA:parentEventIdentifier 0 (1)
correctedEventIdentifier nsA:correctedEventIdentifier 0 (1)
lenderPartyReference nsA:lenderPartyReference (1) (1)
cashPayable nsA:cashPayable 0 (1)
comment nsA:comment 0 (1)
agentPartyReference nsA:agentPartyReference 0 (1)
borrowerPartyReference nsA:borrowerPartyReference 0 (1)
effectiveDate nsA:effectiveDate (1) (1)
facilityReference nsA:facilityReference (1) (1)
<xs:group> nsA:LenderAndCashDetails.model 0 (1)
<xs:group> nsA:BusinessEventParties.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:AccruingFeeChange, nsA:accruingFeeChangeGroup, nsA:AccruingFeeExpiry, nsA:AccruingFeePayment, nsA:AccruingPikOptionChange, nsA:AccruingPikPayment, nsA:CommitmentAdjustment, nsA:facilityEventGroupnsA:FacilityTermination, nsA:FixedRateOptionChange, nsA:FloatingRateOptionChange, nsA:LcOptionChange, nsA:Prepayment, nsA:Rollover,
