Docs for schema item accrualRegion in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	accrualRegion
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:FxAccrualRegion
Containing Schema:	fpml-fx-accruals-5-10.xsd
MinOccurs	(1)
MaxOccurs	unbounded
Abstract
Documentation:	Defines the regions of the spot rate where fixings generate an accumulation of notional.

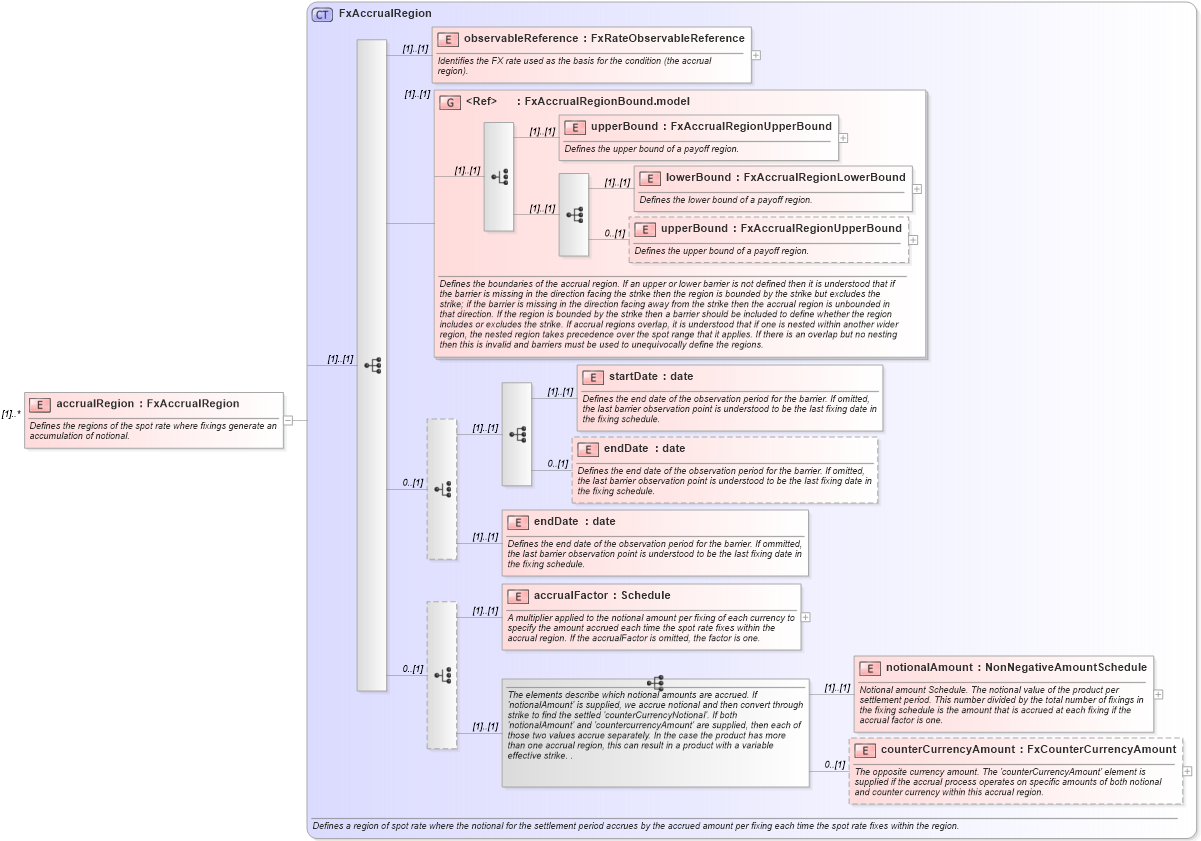

XSD Schema Diagram:

XSD Diagram of accrualRegion in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="accrualRegion" type="FxAccrualRegion" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the regions of the spot rate where fixings generate an accumulation of notional.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
observableReference	nsA:observableReference	(1)	(1)
upperBound	nsA:upperBound	(1)	(1)
lowerBound	nsA:lowerBound	(1)	(1)
upperBound	nsA:upperBound	0	(1)
startDate	nsA:startDate	(1)	(1)
endDate	nsA:endDate	0	(1)
endDate	nsA:endDate	(1)	(1)
accrualFactor	nsA:accrualFactor	(1)	(1)
notionalAmount	nsA:notionalAmount	(1)	(1)
counterCurrencyAmount	nsA:counterCurrencyAmount	0	(1)
<xs:group>	nsA:FxAccrualRegionBound.model	(1)	(1)

Derivation Tree:
	nsA:FxAccrualRegion *accrualRegion*
