Docs for schema item allegedCashflow in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	allegedCashflow
Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	nsE:AllegedNettedCashflow
Containing Schema:	fpml-reconciliation-5-10.xsd
MinOccurs	(1)
MaxOccurs	(1)
Abstract
Documentation:	Cashflow (or set of cashflows for cross-currency swap) asserted by the "other side's" party.

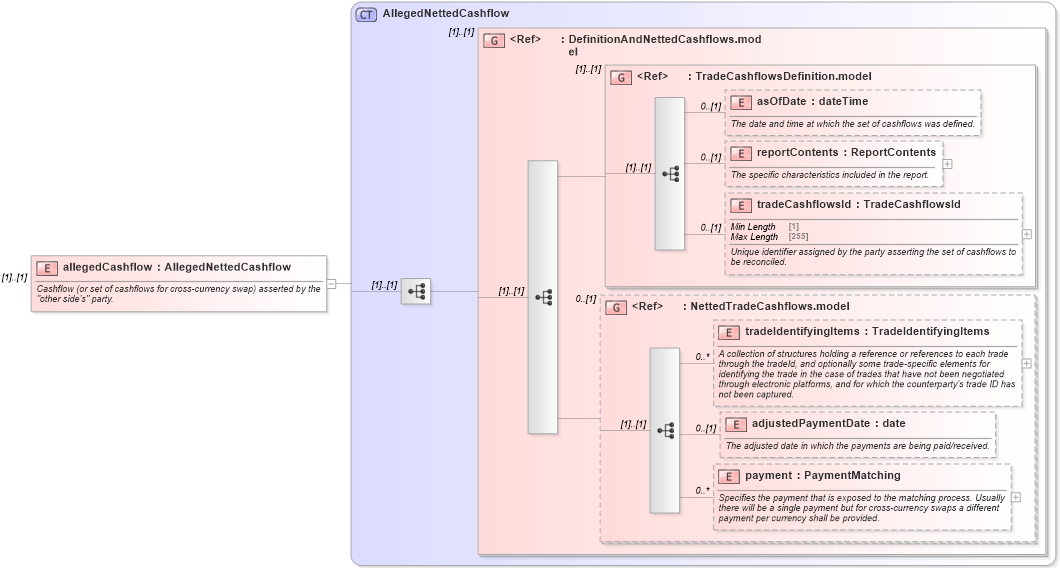

XSD Schema Diagram:

XSD Diagram of allegedCashflow in schema fpml-reconciliation-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="allegedCashflow" type="AllegedNettedCashflow">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Cashflow (or set of cashflows for cross-currency swap) asserted by the "other side's" party.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
asOfDate	nsE:asOfDate	0	(1)
reportContents	nsE:reportContents	0	(1)
tradeCashflowsId	nsE:tradeCashflowsId	0	(1)
tradeIdentifyingItems	nsE:tradeIdentifyingItems	0	unbounded
adjustedPaymentDate	nsE:adjustedPaymentDate	0	(1)
payment	nsE:payment	0	unbounded
<xs:group>	nsE:DefinitionAndNettedCashflows.model	(1)	(1)
<xs:group>	nsE:TradeCashflowsDefinition.model	(1)	(1)
<xs:group>	nsE:NettedTradeCashflows.model	0	(1)

Derivation Tree:
	nsE:AllegedNettedCashflow *allegedCashflow*
