Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: americanExercise
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CommodityAmericanExercise
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the exercise period for an American style option together with the rules governing the quantity of the commodity that can be exercised on any given exercise date.

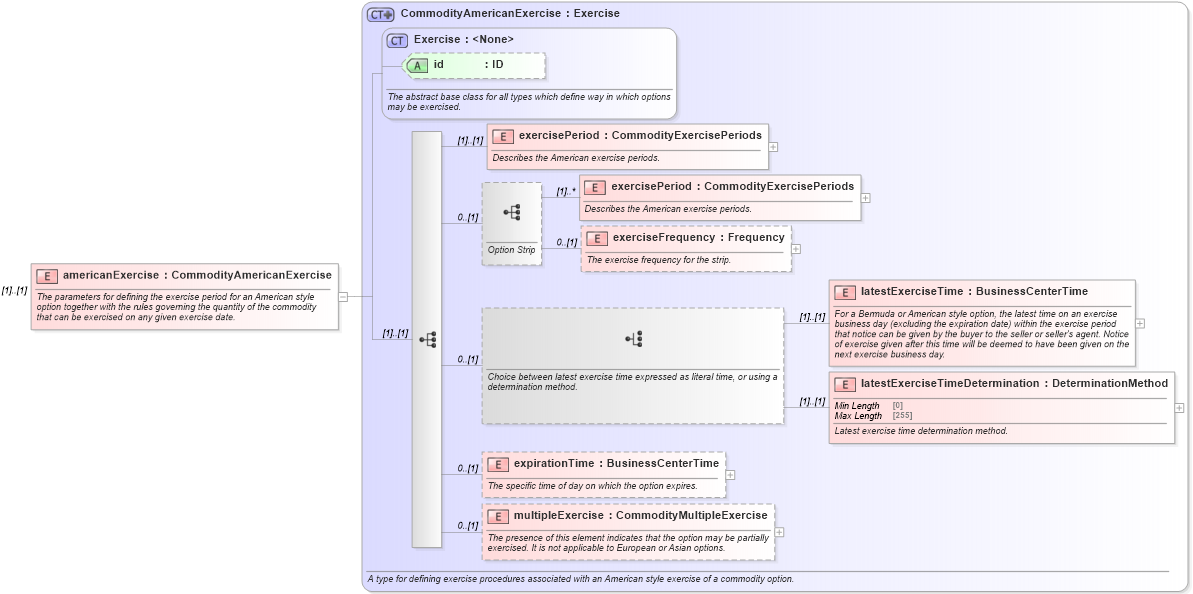

Collapse XSD Schema Diagram:
Drilldown into multipleExercise in schema fpml-com-5-10_xsd Drilldown into expirationTime in schema fpml-com-5-10_xsd Drilldown into latestExerciseTimeDetermination in schema fpml-com-5-10_xsd Drilldown into latestExerciseTime in schema fpml-com-5-10_xsd Drilldown into exerciseFrequency in schema fpml-com-5-10_xsd Drilldown into exercisePeriod in schema fpml-com-5-10_xsd Drilldown into exercisePeriod in schema fpml-com-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Exercise in schema fpml-shared-5-10_xsd Drilldown into CommodityAmericanExercise in schema fpml-com-5-10_xsdXSD Diagram of americanExercise in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="americanExercise" type="CommodityAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the exercise period for an American style option together with the rules governing the quantity of the commodity that can be exercised on any given exercise date.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exercisePeriod nsA:exercisePeriod (1) (1)
exercisePeriod nsA:exercisePeriod (1) unbounded
exerciseFrequency nsA:exerciseFrequency 0 (1)
latestExerciseTime nsA:latestExerciseTime (1) (1)
latestExerciseTimeDetermination nsA:latestExerciseTimeDetermination (1) (1)
expirationTime nsA:expirationTime 0 (1)
multipleExercise nsA:multipleExercise 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
