Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: barrier
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxBarrierFeature
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

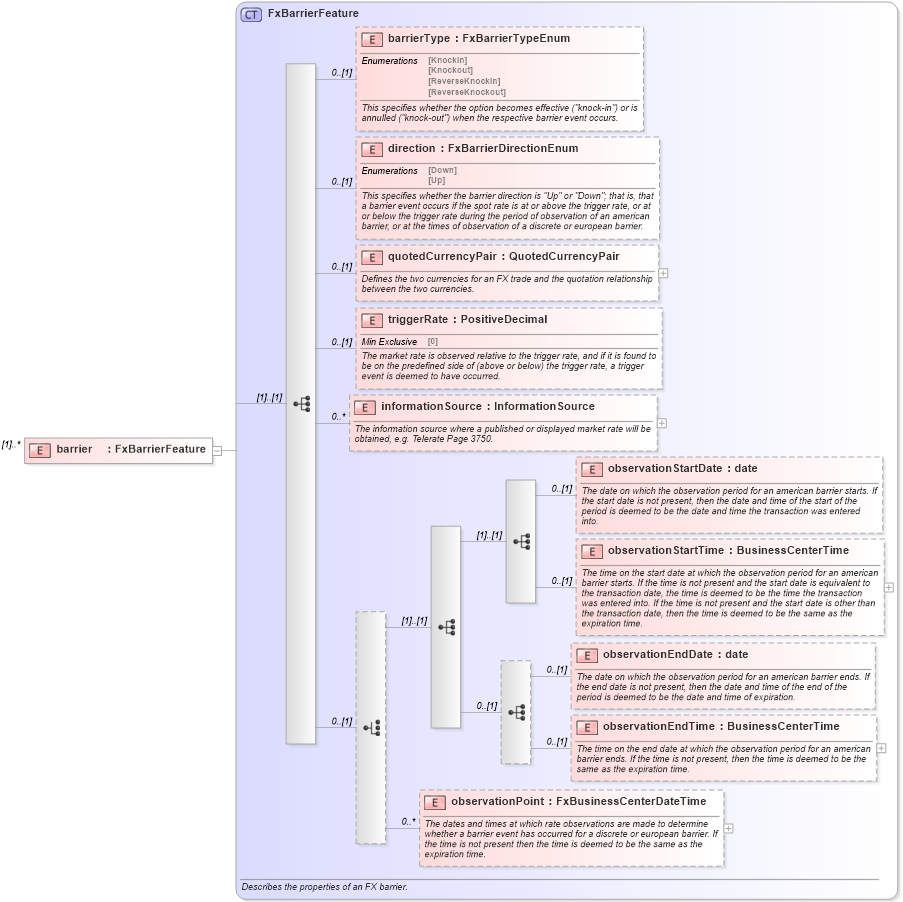

Collapse XSD Schema Diagram:
Drilldown into observationPoint in schema fpml-fx-5-10_xsd2 Drilldown into observationEndTime in schema fpml-fx-5-10_xsd2 Drilldown into observationEndDate in schema fpml-fx-5-10_xsd2 Drilldown into observationStartTime in schema fpml-fx-5-10_xsd2 Drilldown into observationStartDate in schema fpml-fx-5-10_xsd2 Drilldown into informationSource in schema fpml-fx-5-10_xsd2 Drilldown into triggerRate in schema fpml-fx-5-10_xsd2 Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd2 Drilldown into direction in schema fpml-fx-5-10_xsd2 Drilldown into barrierType in schema fpml-fx-5-10_xsd2 Drilldown into FxBarrierFeature in schema fpml-fx-5-10_xsd2XSD Diagram of barrier in schema fpml-fx-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="barrier" type="FxBarrierFeature" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barrierType nsD:barrierType 0 (1)
direction nsD:direction 0 (1)
quotedCurrencyPair nsD:quotedCurrencyPair 0 (1)
triggerRate nsD:triggerRate 0 (1)
informationSource nsD:informationSource 0 unbounded
observationStartDate nsD:observationStartDate 0 (1)
observationStartTime nsD:observationStartTime 0 (1)
observationEndDate nsD:observationEndDate 0 (1)
observationEndTime nsD:observationEndTime 0 (1)
observationPoint nsD:observationPoint 0 unbounded
Collapse Derivation Tree:
