Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: barrier
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxBarrierFeature
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

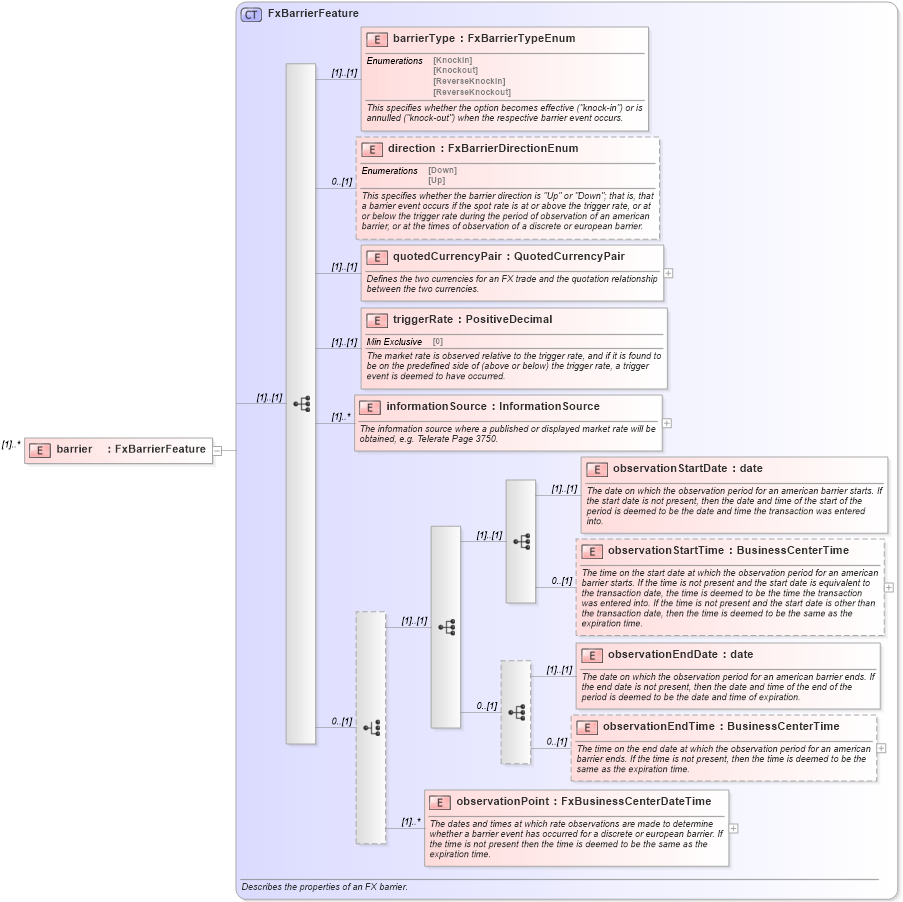

Collapse XSD Schema Diagram:
Drilldown into observationPoint in schema fpml-fx-5-10_xsd Drilldown into observationEndTime in schema fpml-fx-5-10_xsd Drilldown into observationEndDate in schema fpml-fx-5-10_xsd Drilldown into observationStartTime in schema fpml-fx-5-10_xsd Drilldown into observationStartDate in schema fpml-fx-5-10_xsd Drilldown into informationSource in schema fpml-fx-5-10_xsd Drilldown into triggerRate in schema fpml-fx-5-10_xsd Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd Drilldown into direction in schema fpml-fx-5-10_xsd Drilldown into barrierType in schema fpml-fx-5-10_xsd Drilldown into FxBarrierFeature in schema fpml-fx-5-10_xsdXSD Diagram of barrier in schema fpml-fx-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="barrier" type="FxBarrierFeature" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barrierType nsA:barrierType (1) (1)
direction nsA:direction 0 (1)
quotedCurrencyPair nsA:quotedCurrencyPair (1) (1)
triggerRate nsA:triggerRate (1) (1)
informationSource nsA:informationSource (1) unbounded
observationStartDate nsA:observationStartDate (1) (1)
observationStartTime nsA:observationStartTime 0 (1)
observationEndDate nsA:observationEndDate (1) (1)
observationEndTime nsA:observationEndTime 0 (1)
observationPoint nsA:observationPoint (1) unbounded
Collapse Derivation Tree:
