Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: barrier
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxAccrualBarrier
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Defines a knockout barrier conditions where if a barrier event occurs, the accrual process is terminated for the duration of all remaining accrual periods. Settlement rights for the next settlement are either retained or extinguished.

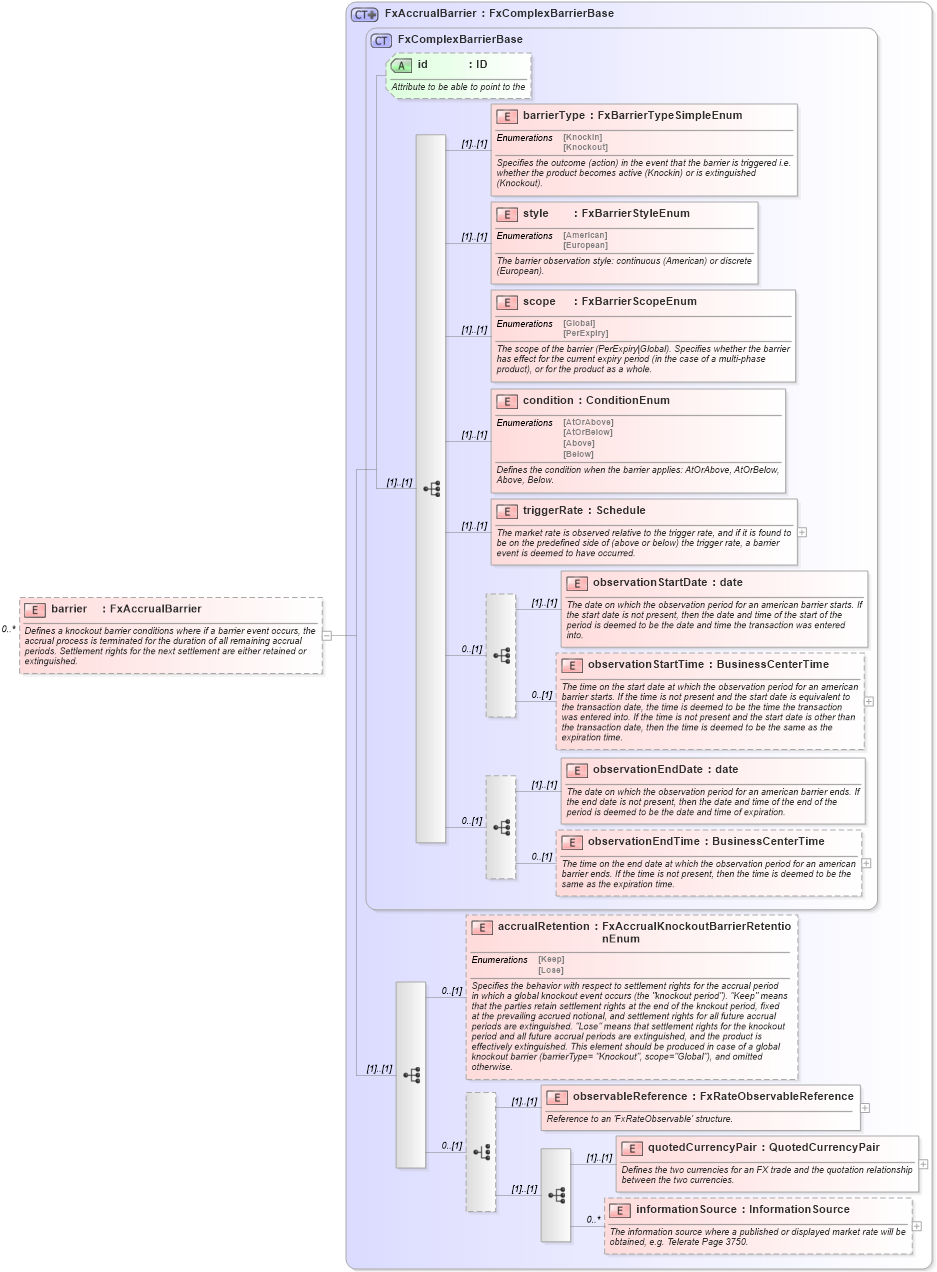

Collapse XSD Schema Diagram:
Drilldown into informationSource in schema fpml-fx-accruals-5-10_xsd Drilldown into quotedCurrencyPair in schema fpml-fx-accruals-5-10_xsd Drilldown into observableReference in schema fpml-fx-accruals-5-10_xsd Drilldown into accrualRetention in schema fpml-fx-accruals-5-10_xsd Drilldown into observationEndTime in schema fpml-fx-targets-5-10_xsd Drilldown into observationEndDate in schema fpml-fx-targets-5-10_xsd Drilldown into observationStartTime in schema fpml-fx-targets-5-10_xsd Drilldown into observationStartDate in schema fpml-fx-targets-5-10_xsd Drilldown into triggerRate in schema fpml-fx-targets-5-10_xsd Drilldown into condition in schema fpml-fx-targets-5-10_xsd Drilldown into scope in schema fpml-fx-targets-5-10_xsd Drilldown into style in schema fpml-fx-targets-5-10_xsd Drilldown into barrierType in schema fpml-fx-targets-5-10_xsd Drilldown into id in schema fpml-fx-targets-5-10_xsd Drilldown into FxComplexBarrierBase in schema fpml-fx-targets-5-10_xsd Drilldown into FxAccrualBarrier in schema fpml-fx-accruals-5-10_xsdXSD Diagram of barrier in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="barrier" type="FxAccrualBarrier" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a knockout barrier conditions where if a barrier event occurs, the accrual process is terminated for the duration of all remaining accrual periods. Settlement rights for the next settlement are either retained or extinguished.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barrierType nsA:barrierType (1) (1)
style nsA:style (1) (1)
scope nsA:scope (1) (1)
condition nsA:condition (1) (1)
triggerRate nsA:triggerRate (1) (1)
observationStartDate nsA:observationStartDate (1) (1)
observationStartTime nsA:observationStartTime 0 (1)
observationEndDate nsA:observationEndDate (1) (1)
observationEndTime nsA:observationEndTime 0 (1)
accrualRetention nsA:accrualRetention 0 (1)
observableReference nsA:observableReference (1) (1)
quotedCurrencyPair nsA:quotedCurrencyPair (1) (1)
informationSource nsA:informationSource 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
Collapse Derivation Tree:
