Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: barrier
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxAccrualBarrier
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Defines a FX Accrual barrier conditions. Element barrier/scope specifies whether the barrier applies to the expiry period in which it is observed, or globally for whole product.

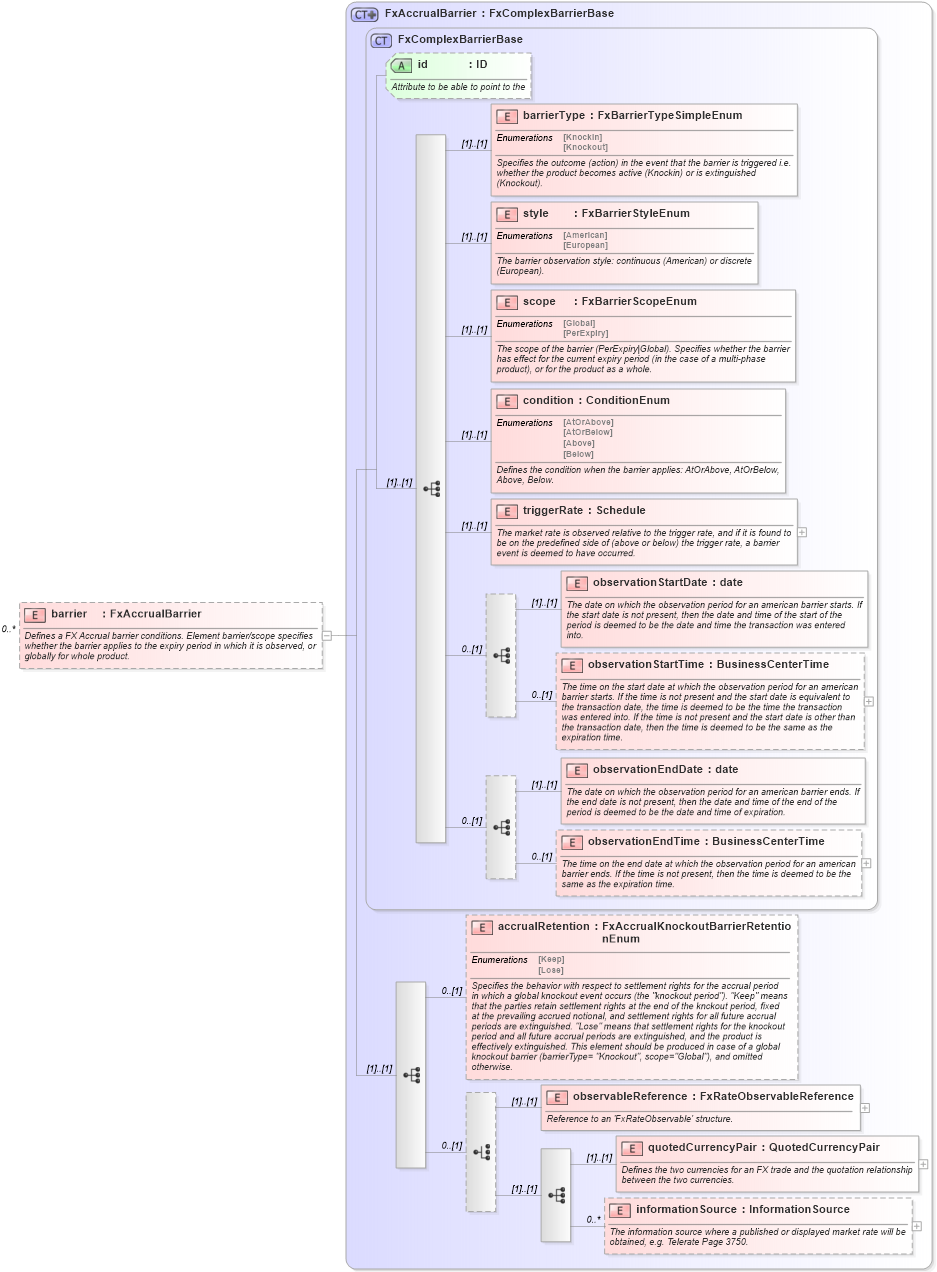

Collapse XSD Schema Diagram:
Drilldown into informationSource in schema fpml-fx-accruals-5-10_xsd Drilldown into quotedCurrencyPair in schema fpml-fx-accruals-5-10_xsd Drilldown into observableReference in schema fpml-fx-accruals-5-10_xsd Drilldown into accrualRetention in schema fpml-fx-accruals-5-10_xsd Drilldown into observationEndTime in schema fpml-fx-targets-5-10_xsd Drilldown into observationEndDate in schema fpml-fx-targets-5-10_xsd Drilldown into observationStartTime in schema fpml-fx-targets-5-10_xsd Drilldown into observationStartDate in schema fpml-fx-targets-5-10_xsd Drilldown into triggerRate in schema fpml-fx-targets-5-10_xsd Drilldown into condition in schema fpml-fx-targets-5-10_xsd Drilldown into scope in schema fpml-fx-targets-5-10_xsd Drilldown into style in schema fpml-fx-targets-5-10_xsd Drilldown into barrierType in schema fpml-fx-targets-5-10_xsd Drilldown into id in schema fpml-fx-targets-5-10_xsd Drilldown into FxComplexBarrierBase in schema fpml-fx-targets-5-10_xsd Drilldown into FxAccrualBarrier in schema fpml-fx-accruals-5-10_xsdXSD Diagram of barrier in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="barrier" type="FxAccrualBarrier" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a FX Accrual barrier conditions. Element barrier/scope specifies whether the barrier applies to the expiry period in which it is observed, or globally for whole product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barrierType nsA:barrierType (1) (1)
style nsA:style (1) (1)
scope nsA:scope (1) (1)
condition nsA:condition (1) (1)
triggerRate nsA:triggerRate (1) (1)
observationStartDate nsA:observationStartDate (1) (1)
observationStartTime nsA:observationStartTime 0 (1)
observationEndDate nsA:observationEndDate (1) (1)
observationEndTime nsA:observationEndTime 0 (1)
accrualRetention nsA:accrualRetention 0 (1)
observableReference nsA:observableReference (1) (1)
quotedCurrencyPair nsA:quotedCurrencyPair (1) (1)
informationSource nsA:informationSource 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
Collapse Derivation Tree:
