Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: BasicQuotation
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
Some kind of numerical measure about an asset, eg. its NPV, together with characteristics of that measure.

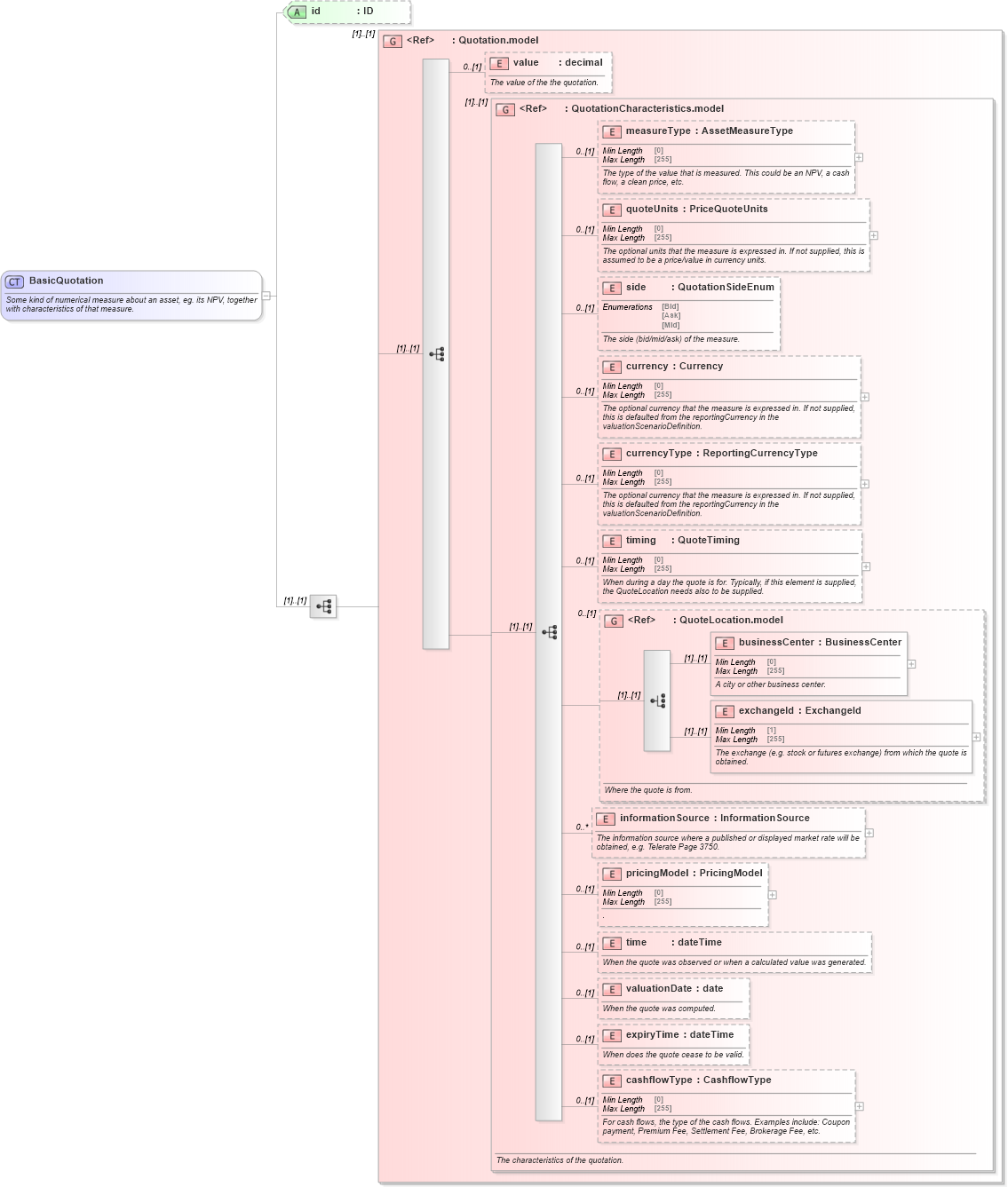

Collapse XSD Schema Diagram:
Drilldown into cashflowType in schema fpml-asset-5-10_xsd4 Drilldown into expiryTime in schema fpml-asset-5-10_xsd4 Drilldown into valuationDate in schema fpml-asset-5-10_xsd4 Drilldown into time in schema fpml-asset-5-10_xsd4 Drilldown into pricingModel in schema fpml-asset-5-10_xsd4 Drilldown into informationSource in schema fpml-asset-5-10_xsd4 Drilldown into exchangeId in schema fpml-asset-5-10_xsd4 Drilldown into businessCenter in schema fpml-asset-5-10_xsd4 Drilldown into QuoteLocation.model in schema fpml-asset-5-10_xsd4 Drilldown into timing in schema fpml-asset-5-10_xsd4 Drilldown into currencyType in schema fpml-asset-5-10_xsd4 Drilldown into currency in schema fpml-asset-5-10_xsd4 Drilldown into side in schema fpml-asset-5-10_xsd4 Drilldown into quoteUnits in schema fpml-asset-5-10_xsd4 Drilldown into measureType in schema fpml-asset-5-10_xsd4 Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-10_xsd4 Drilldown into value in schema fpml-asset-5-10_xsd4 Drilldown into Quotation.model in schema fpml-asset-5-10_xsd4 Drilldown into id in schema fpml-asset-5-10_xsd4XSD Diagram of BasicQuotation in schema fpml-asset-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="BasicQuotation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Some kind of numerical measure about an asset, eg. its NPV, together with characteristics of that measure.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="Quotation.model" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
value nsE:value 0 (1)
measureType nsE:measureType 0 (1)
quoteUnits nsE:quoteUnits 0 (1)
side nsE:side 0 (1)
currency nsE:currency 0 (1)
currencyType nsE:currencyType 0 (1)
timing nsE:timing 0 (1)
businessCenter nsE:businessCenter (1) (1)
exchangeId nsE:exchangeId (1) (1)
informationSource nsE:informationSource 0 unbounded
pricingModel nsE:pricingModel 0 (1)
time nsE:time 0 (1)
valuationDate nsE:valuationDate 0 (1)
expiryTime nsE:expiryTime 0 (1)
cashflowType nsE:cashflowType 0 (1)
<xs:group> nsE:Quotation.model (1) (1)
<xs:group> nsE:QuotationCharacteristics.model (1) (1)
<xs:group> nsE:QuoteLocation.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:observedValue, nsE:quote, nsE:quote, nsE:quote, nsE:quote, nsE:quote
