Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: observedValue
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:BasicQuotation
Containing Schema: fpml-reconciliation-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The observed rate or price, together with descriptive information such as units.

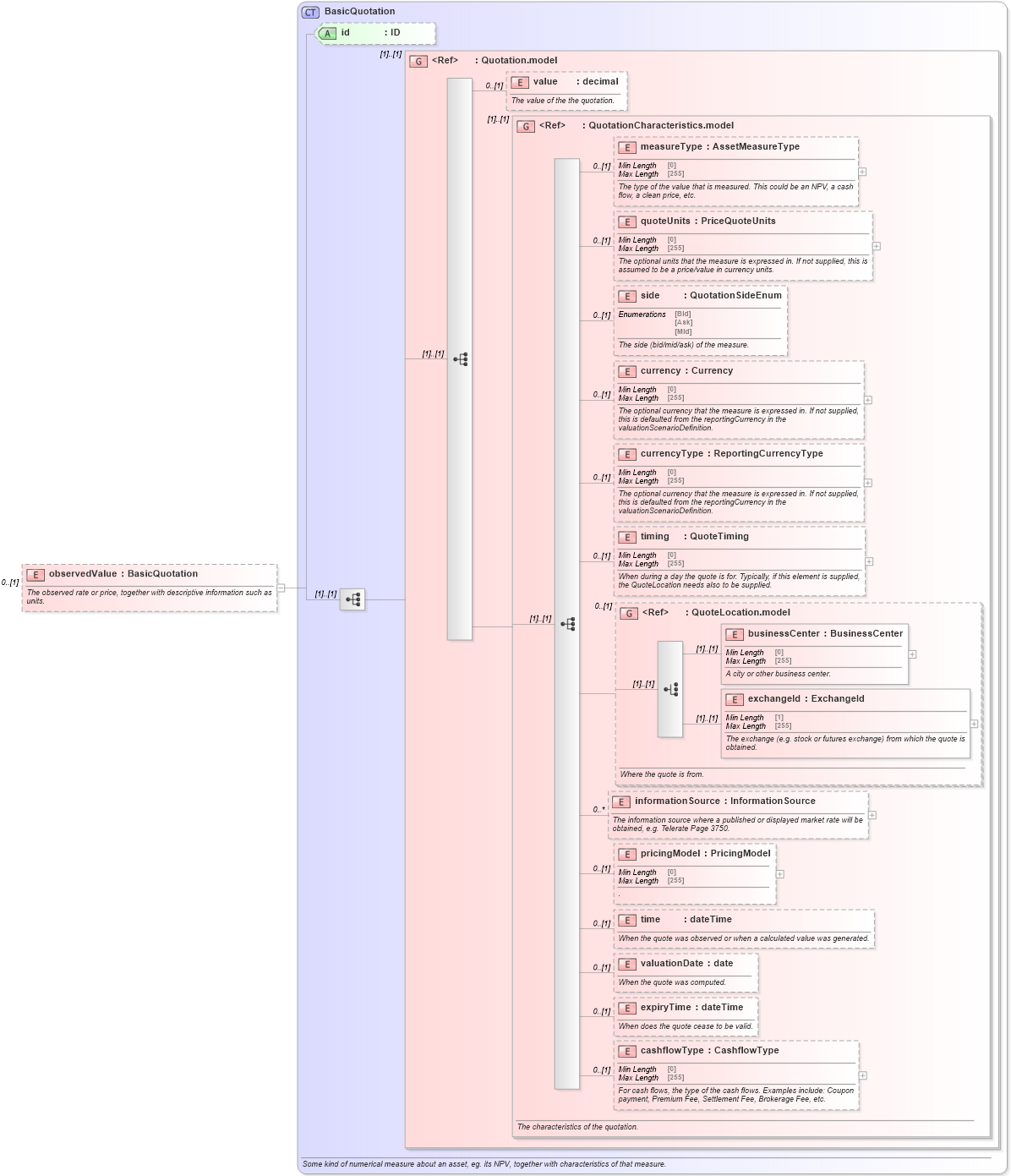

Collapse XSD Schema Diagram:
Drilldown into cashflowType in schema fpml-asset-5-10_xsd4 Drilldown into expiryTime in schema fpml-asset-5-10_xsd4 Drilldown into valuationDate in schema fpml-asset-5-10_xsd4 Drilldown into time in schema fpml-asset-5-10_xsd4 Drilldown into pricingModel in schema fpml-asset-5-10_xsd4 Drilldown into informationSource in schema fpml-asset-5-10_xsd4 Drilldown into exchangeId in schema fpml-asset-5-10_xsd4 Drilldown into businessCenter in schema fpml-asset-5-10_xsd4 Drilldown into QuoteLocation.model in schema fpml-asset-5-10_xsd4 Drilldown into timing in schema fpml-asset-5-10_xsd4 Drilldown into currencyType in schema fpml-asset-5-10_xsd4 Drilldown into currency in schema fpml-asset-5-10_xsd4 Drilldown into side in schema fpml-asset-5-10_xsd4 Drilldown into quoteUnits in schema fpml-asset-5-10_xsd4 Drilldown into measureType in schema fpml-asset-5-10_xsd4 Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-10_xsd4 Drilldown into value in schema fpml-asset-5-10_xsd4 Drilldown into Quotation.model in schema fpml-asset-5-10_xsd4 Drilldown into id in schema fpml-asset-5-10_xsd4 Drilldown into BasicQuotation in schema fpml-asset-5-10_xsd4XSD Diagram of observedValue in schema fpml-reconciliation-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="observedValue" type="BasicQuotation" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The observed rate or price, together with descriptive information such as units.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
value nsE:value 0 (1)
measureType nsE:measureType 0 (1)
quoteUnits nsE:quoteUnits 0 (1)
side nsE:side 0 (1)
currency nsE:currency 0 (1)
currencyType nsE:currencyType 0 (1)
timing nsE:timing 0 (1)
businessCenter nsE:businessCenter (1) (1)
exchangeId nsE:exchangeId (1) (1)
informationSource nsE:informationSource 0 unbounded
pricingModel nsE:pricingModel 0 (1)
time nsE:time 0 (1)
valuationDate nsE:valuationDate 0 (1)
expiryTime nsE:expiryTime 0 (1)
cashflowType nsE:cashflowType 0 (1)
<xs:group> nsE:Quotation.model (1) (1)
<xs:group> nsE:QuotationCharacteristics.model (1) (1)
<xs:group> nsE:QuoteLocation.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Documentation for Financial products Markup Language (FpML®)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
