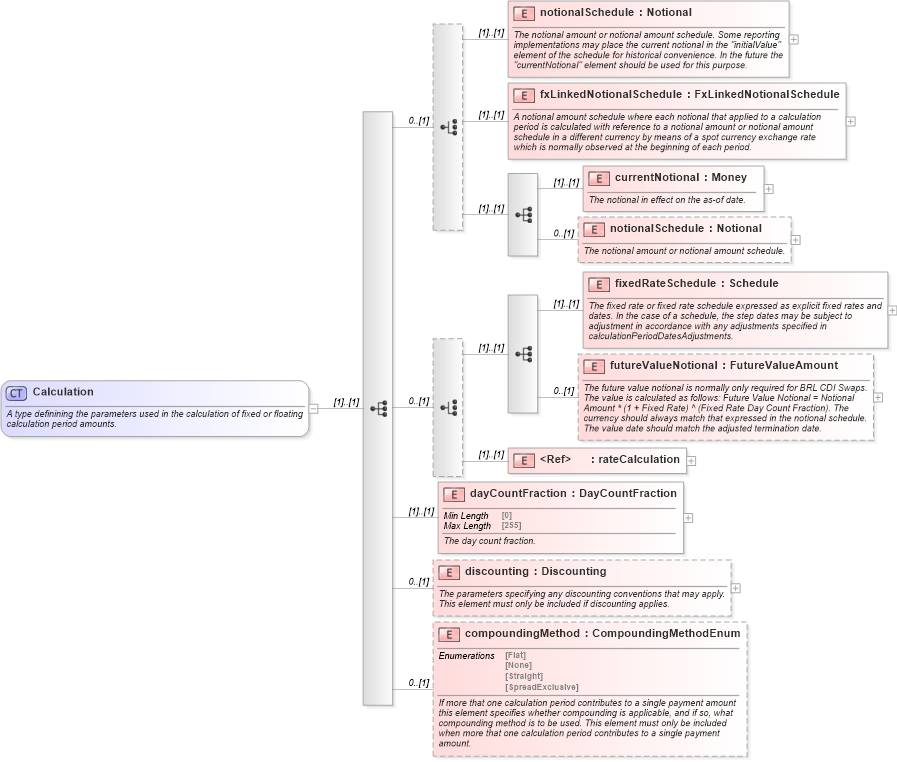

<xsd:complexType name="Calculation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type definining the parameters used in the calculation of fixed or floating calculation period amounts.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:choice minOccurs="0">
            <xsd:element name="notionalSchedule" type="Notional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The notional amount or notional amount schedule. Some reporting implementations may place the current notional in the "initialValue" element of the schedule for historical convenience. In the future the "currentNotional" element should be used for this purpose.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="fxLinkedNotionalSchedule" type="FxLinkedNotionalSchedule">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">A notional amount schedule where each notional that applied to a calculation period is calculated with reference to a notional amount or notional amount schedule in a different currency by means of a spot currency exchange rate which is normally observed at the beginning of each period.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:sequence>
                <xsd:element name="currentNotional" type="Money">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The notional in effect on the as-of date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="notionalSchedule" type="Notional" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The notional amount or notional amount schedule.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:choice>
        <xsd:choice minOccurs="0">
            <xsd:sequence>
                <xsd:element name="fixedRateSchedule" type="Schedule">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The fixed rate or fixed rate schedule expressed as explicit fixed rates and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="futureValueNotional" type="FutureValueAmount" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The future value notional is normally only required for BRL CDI Swaps. The value is calculated as follows: Future Value Notional = Notional Amount * (1 + Fixed Rate) ^ (Fixed Rate Day Count Fraction). The currency should always match that expressed in the notional schedule. The value date should match the adjusted termination date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:element ref="rateCalculation">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">This element is the head of a substitution group. It is substituted by the floatingRateCalculation element for standard Floating Rate legs, or the inflationRateCalculation element for inflation swaps.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="dayCountFraction" type="DayCountFraction">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The day count fraction.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="discounting" type="Discounting" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The parameters specifying any discounting conventions that may apply. This element must only be included if discounting applies.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="compoundingMethod" type="CompoundingMethodEnum" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">If more that one calculation period contributes to a single payment amount this element specifies whether compounding is applicable, and if so, what compounding method is to be used. This element must only be included when more that one calculation period contributes to a single payment amount.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
