Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: ClearingResults.model
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-confirmation-processes-5-10.xsd
Documentation:
Events/Results that are applicable to clearing processes.

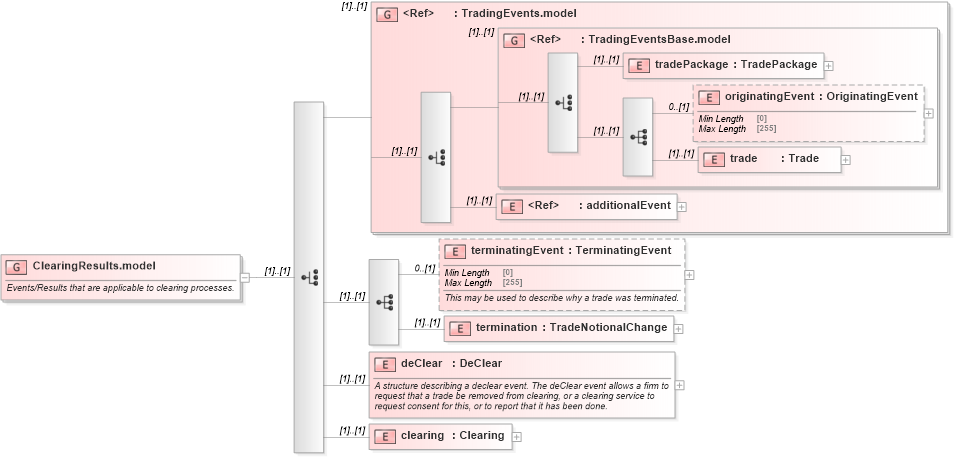

Collapse XSD Schema Diagram:
Drilldown into clearing in schema fpml-confirmation-processes-5-10_xsd Drilldown into deClear in schema fpml-confirmation-processes-5-10_xsd Drilldown into termination in schema fpml-confirmation-processes-5-10_xsd Drilldown into terminatingEvent in schema fpml-confirmation-processes-5-10_xsd Drilldown into additionalEvent in schema fpml-business-events-5-10_xsd Drilldown into trade in schema fpml-business-events-5-10_xsd Drilldown into originatingEvent in schema fpml-business-events-5-10_xsd Drilldown into tradePackage in schema fpml-business-events-5-10_xsd Drilldown into TradingEventsBase.model in schema fpml-business-events-5-10_xsd Drilldown into TradingEvents.model in schema fpml-business-events-5-10_xsdXSD Diagram of ClearingResults.model in schema fpml-confirmation-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="ClearingResults.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Events/Results that are applicable to clearing processes.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:group ref="TradingEvents.model" />
        <xsd:sequence>
            <xsd:element name="terminatingEvent" type="TerminatingEvent" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">This may be used to describe why a trade was terminated.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="termination" type="TradeNotionalChange" />
        </xsd:sequence>
        <xsd:element name="deClear" type="DeClear">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A structure describing a declear event. The deClear event allows a firm to request that a trade be removed from clearing, or a clearing service to request consent for this, or to report that it has been done.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="clearing" type="Clearing" />
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tradePackage nsA:tradePackage (1) (1)
originatingEvent nsA:originatingEvent 0 (1)
trade nsA:trade (1) (1)
additionalEvent nsA:additionalEvent (1) (1)
terminatingEvent nsA:terminatingEvent 0 (1)
termination nsA:termination (1) (1)
deClear nsA:deClear (1) (1)
clearing nsA:clearing (1) (1)
<xs:group> nsA:TradingEvents.model (1) (1)
<xs:group> nsA:TradingEventsBase.model (1) (1)
