Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CommodityNotionalQuantity
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
Commodity Notional.

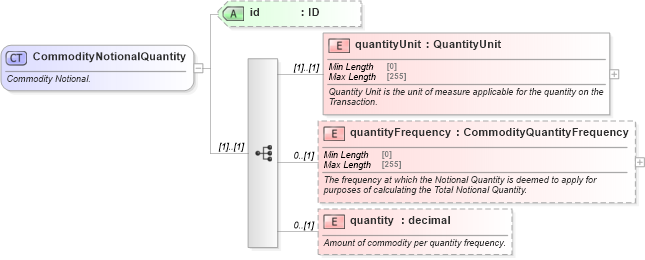

Collapse XSD Schema Diagram:
Drilldown into quantity in schema fpml-com-5-10_xsd1 Drilldown into quantityFrequency in schema fpml-com-5-10_xsd1 Drilldown into quantityUnit in schema fpml-com-5-10_xsd1 Drilldown into id in schema fpml-com-5-10_xsd1XSD Diagram of CommodityNotionalQuantity in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommodityNotionalQuantity">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Commodity Notional.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="quantityUnit" type="QuantityUnit">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Quantity Unit is the unit of measure applicable for the quantity on the Transaction.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="quantityFrequency" type="CommodityQuantityFrequency" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The frequency at which the Notional Quantity is deemed to apply for purposes of calculating the Total Notional Quantity.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="quantity" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Amount of commodity per quantity frequency.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quantityUnit nsD:quantityUnit (1) (1)
quantityFrequency nsD:quantityFrequency 0 (1)
quantity nsD:quantity 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:CommoditySettlementPeriodsNotionalQuantity, nsD:ElectricityPhysicalDeliveryQuantity, nsD:integralMultipleQuantity, nsD:maxPhysicalQuantity, nsD:minimumNotionalQuantity, nsD:minPhysicalQuantity, nsD:notionalQuantity, nsD:notionalQuantitynsD:notionalStep, nsD:physicalQuantity, nsD:quantityStep, nsD:settlementPeriodsNotionalQuantityStep,
