Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriodsNotionalQuantityStep
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:CommodityNotionalQuantity
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
For an electricity transaction, the Notional Quantity for a given Calculation Period during the life of the trade which applies to the range(s) of Settlement Periods referenced by settlementPeriodsReference. There must be a settlementPeriodsNotionalQuantityStep specified for each Calculation Period, regardless of whether the NotionalQuantity changes or remains the same between periods.

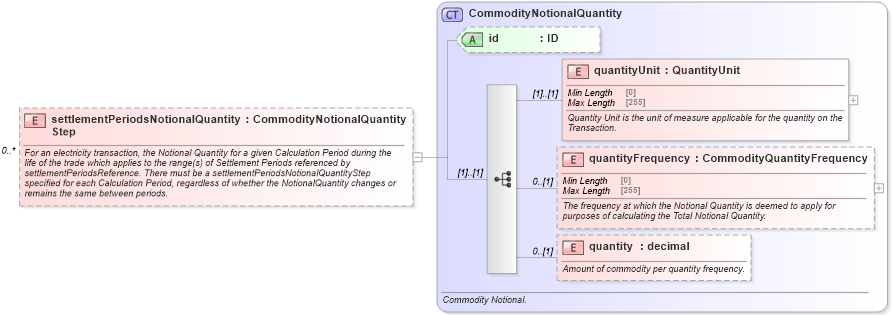

Collapse XSD Schema Diagram:
Drilldown into quantity in schema fpml-com-5-10_xsd1 Drilldown into quantityFrequency in schema fpml-com-5-10_xsd1 Drilldown into quantityUnit in schema fpml-com-5-10_xsd1 Drilldown into id in schema fpml-com-5-10_xsd1 Drilldown into CommodityNotionalQuantity in schema fpml-com-5-10_xsd1XSD Diagram of settlementPeriodsNotionalQuantityStep in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriodsNotionalQuantityStep" type="CommodityNotionalQuantity" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">For an electricity transaction, the Notional Quantity for a given Calculation Period during the life of the trade which applies to the range(s) of Settlement Periods referenced by settlementPeriodsReference. There must be a settlementPeriodsNotionalQuantityStep specified for each Calculation Period, regardless of whether the NotionalQuantity changes or remains the same between periods.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quantityUnit nsD:quantityUnit (1) (1)
quantityFrequency nsD:quantityFrequency 0 (1)
quantity nsD:quantity 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
